Nonlinear Crystals

×
  • 800nm 및 1030nm 레이저의 주파수 변환을 위한 BBO Crystal
  • 1030nm 및 1064nm 레이저의 주파수 변환을 위한 LBO Crystal
  • 10Hz, 10ns, 1064nm에서 최대 10 J/cm2의 높은 Damage Threshold
  • UV - IR의 광대역 투명 범위

공통 스펙

Coating:
AR Coating
Perpendicularity (arcmin):
<5
Surface Quality:
20-10
 Crystal Type   Dimensions (mm)   Thickness (mm)   Mount   Typical Applications   제품 비교하기   재고 번호   가격(부가세 별도)  구입하기
LBO 3.0 x 3.0 10.00 Unmounted THG @ 1064nm, Type II #11-174 KRW 442,300   견적 요청
  • 3~5일내 배송
    ×

LBO 3.0 x 3.0 10.00 Unmounted SHG @ 1064 nm, Type I #24-199 KRW 427,800   견적 요청
  • 3~5일내 배송
    ×

LBO 3.0 x 3.0 15.00 Unmounted NCPM SHG @ 1064nm, T=150°C #11-172 KRW 580,000   견적 요청
  • 3~5일내 배송
    ×

LBO 3.0 x 3.0 15.00 Unmounted SHG @ 1064nm, Type I #11-173 KRW 580,000   견적 요청
  • 3~5일내 배송
    ×

LBO 4.0 x 4.0 10.00 Unmounted SHG @ 1064 nm, Type I #24-200 KRW 862,800   견적 요청
  • 3~5일내 배송
    ×

BBO 6.0 x 6.0 0.20 Mounted THG @ 800nm, Type I #11-170 KRW 957,000 수량 3+ KRW 845,400   견적 요청
  • 3~5일내 배송
    ×

BBO 6.0 x 6.0 0.50 Mounted THG @ 800nm, Type I #11-168 KRW 848,300 수량 3+ KRW 751,100   견적 요청
  • 3~5일내 배송
    ×

BBO 6.0 x 6.0 0.10 Mounted SHG @ 800nm, Type I #23-340 KRW 1,007,800 수량 3+ KRW 899,000   견적 요청
  • 3~5일내 배송
    ×

BBO 6.0 x 6.0 0.20 Mounted SHG @ 800nm, Type I #23-341 KRW 1,007,800 수량 3+ KRW 899,000   견적 요청
  • 3~5일내 배송
    ×

BBO 6.0 x 6.0 0.20 Mounted SHG @ 1030 nm, Type I #24-196 KRW 1,007,800 수량 3+ KRW 899,000   견적 요청
  • 3~5일내 배송
    ×

BBO 6.0 x 6.0 0.50 Mounted SHG @ 515 nm, Type I #24-201 KRW 957,000 수량 3+ KRW 845,400   견적 요청
  • 3~5일내 배송
    ×

BBO 6.0 x 6.0 0.50 Mounted SHG @ 800nm, Type I #11-167 KRW 848,300 수량 3+ KRW 751,100   견적 요청
  • 3~5일내 배송
    ×

BBO 6.0 x 6.0 0.50 Mounted SHG @ 1030nm, Type I #11-169 KRW 957,000 수량 3+ KRW 845,400   견적 요청
  • 3~5일내 배송
    ×

LBO 6.0 x 6.0 0.90 Unmounted SHG @ 1030nm, Type I #11-171 KRW 1,080,300   견적 요청
  • 3~5일내 배송
    ×

BBO 6.0 x 6.0 1.00 Mounted SHG @ 800nm, Type I #15-277 KRW 826,500 수량 3+ KRW 732,300   견적 요청
  • 품절/문의요망
    ×

BBO 6.0 x 6.0 1.00 Mounted SHG @ 1030nm, Type I #15-278 KRW 877,300 수량 3+ KRW 772,900   견적 요청
  • 3~5일내 배송
    ×

BBO 10.0 x 10.0 0.50 Mounted SHG @ 800nm, Type I #11-166 KRW 1,442,800 수량 3+ KRW 1,270,200   견적 요청
  • 품절/문의요망
    ×

KDP 12.0 x 12.0 5.00 Unmounted SHG @ 532 nm, Type I #24-197 KRW 848,300   견적 요청
  • 3~5일내 배송
    ×

KDP 15.0 x 15.0 7.00 Unmounted SHG @ 532 nm, Type I #24-198 KRW 1,007,800   견적 요청
  • 품절/문의요망
    ×


Nonlinear Crystals는 β-barium borate (BBO) 또는 lithium triborate (LBO) 소재로 제작되며 레이저 광원의 주파수를 변환하는 데 사용됩니다. BBO crystal은 군속도의 불일치를 최소화하기 위해 0.2mm - 0.5mm의 두께로 제작되며 Ti:Sapphire와 Yb:doped 레이저 펄스의 주파수를 2배 혹은 3배로 증가시킬 때 이상적으로 사용할 수 있습니다. Critical 및 noncritical phase matching LBO crystal은 Nd:YAG와 Yb:doped 레이저의 2차 혹은 3차 고조파 생성에 이상적으로 사용할 수 있습니다. 이 Nonlinear Crystals는 20-10의 표면 품질도, λ/10 (LBO) 또는 λ/8 (BBO)의 표면 평탄도를 가지고 있으며 기본 레이저 주파수의 고조파 생성에 필요한 큰 비선형 계수와 넓은 투명 범위를 제공합니다. 각각의 크리스털은 반사를 최소화하고 주변 환경에 의해 발생하는 김서림을 방지하기 위해 보호용 AR 코팅이 되어 있어 있습니다.

Filter

레이저 부품의 LIDT 이해와 표기

Laser induced damage threshold (LIDT) denotes the maximum laser fluence an optical component can withstand with an acceptable amount of risk.

바로 보기

Gaussian Beams Calculator

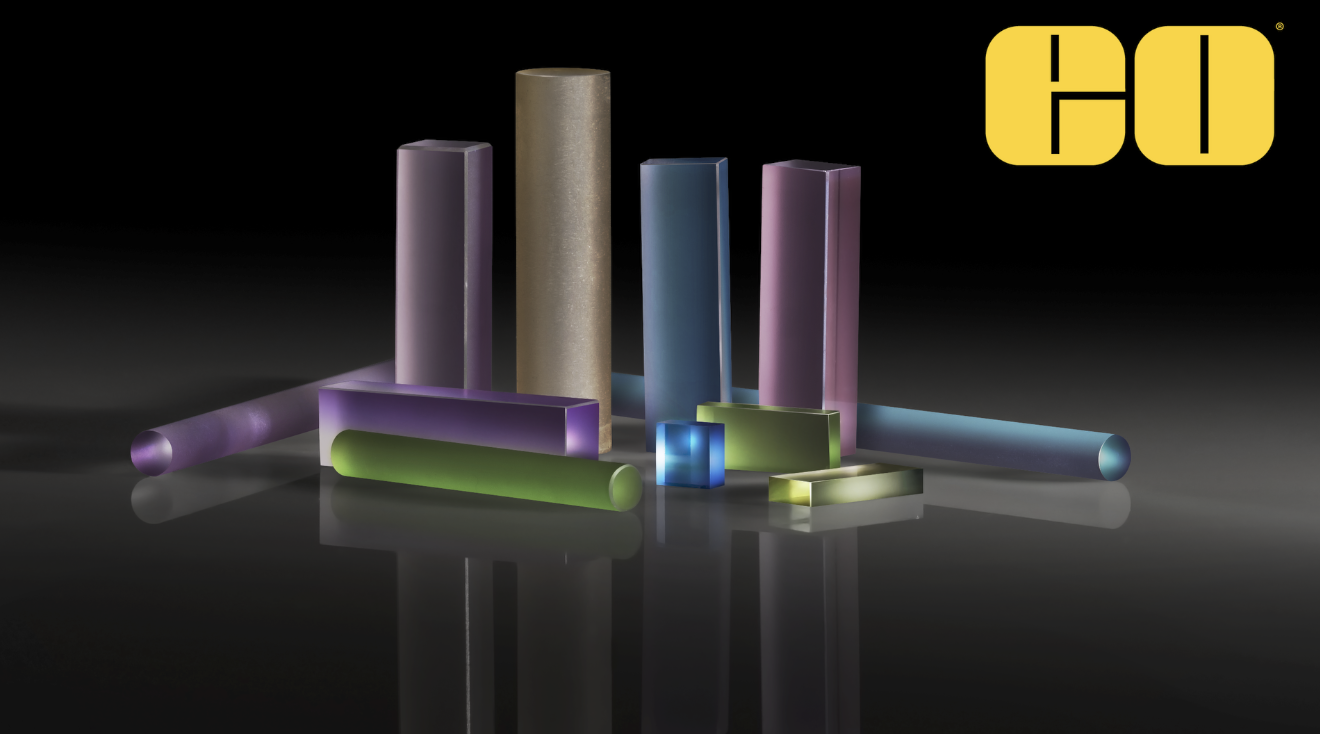

How Laser Crystals are Made
