Ci Series Fixed Focal Length Lenses

TECHSPEC® Ci Series Fixed Focal Length Lenses

TECHSPEC® Ci Series Fixed Focal Length Lenses

TECHSPEC® Ci Series Fixed Focal Length Lenses 6mm Focal Length 8.5mm Focal Length 12mm Focal Length +4
×
  • 최대 2/3", C-마운트 렌즈
  • 최대 750만 화소, 2.8µm 픽셀 크기의 센서
  • 당사 C Series Lens의 Instrumentation 버전(Ci)으로 간소화된 기계 설계와 고정 조리개가 특징
  • 초점 거리: 3.5 - 50mm
  • Ruggedized 버전(Cr) 구성 가능
FL (mm) Max. Sensor Format  Aperture (f/#)  WD (mm)  Mount   제품 비교하기   재고 번호   가격(부가세 별도)  구입하기
3.50 1/1.8" f/2 0 - ∞ C-Mount #87-545 KRW 348,500   견적 요청
  • 3~5일내 배송
    ×

3.50 1/1.8" f/2.8 0 - ∞ C-Mount #87-546 KRW 348,500   견적 요청
  • 3~5일내 배송
    ×

3.50 1/1.8" f/4 0 - ∞ C-Mount #87-547 KRW 348,500   견적 요청
  • 3~5일내 배송
    ×

3.50 1/1.8" f/5.6 0 - ∞ C-Mount #87-548 KRW 348,500   견적 요청
  • 3~5일내 배송
    ×

3.50 1/1.8" f/8 0 - ∞ C-Mount #87-549 KRW 348,500   견적 요청
  • 3~5일내 배송
    ×

3.50 1/1.8" f/11 0 - ∞ C-Mount #87-550 KRW 348,500   견적 요청
  • 3~5일내 배송
    ×

4.50 1/1.8" f/2 25 - ∞ C-Mount #87-551 KRW 348,500   견적 요청
  • 3~5일내 배송
    ×

4.50 1/1.8" f/2.8 25 - ∞ C-Mount #87-552 KRW 348,500   견적 요청
  • 3~5일내 배송
    ×

4.50 1/1.8" f/4 25 - ∞ C-Mount #87-553 KRW 348,500   견적 요청
  • 3~5일내 배송
    ×

4.50 1/1.8" f/5.6 25 - ∞ C-Mount #87-554 KRW 348,500   견적 요청
  • 3~5일내 배송
    ×

4.50 1/1.8" f/8 25 - ∞ C-Mount #87-555 KRW 348,500   견적 요청
  • 3~5일내 배송
    ×

4.50 1/1.8" f/11 25 - ∞ C-Mount #87-556 KRW 348,500   견적 요청
  • 3~5일내 배송
    ×

6.00 1/1.8" f/1.4 75 - ∞ C-Mount #86-591 KRW 282,900   견적 요청
  • 3~5일내 배송
    ×

6.00 1/1.8" f/1.8 75 - ∞ C-Mount #86-592 KRW 282,900   견적 요청
  • 3~5일내 배송
    ×

6.00 1/1.8" f/2.8 75 - ∞ C-Mount #86-593 KRW 282,900   견적 요청
  • 3~5일내 배송
    ×

6.00 1/1.8" f/4 75 - ∞ C-Mount #86-594 KRW 282,900   견적 요청
  • 3~5일내 배송
    ×

6.00 1/1.8" f/5.6 75 - ∞ C-Mount #86-595 KRW 282,900   견적 요청
  • 3~5일내 배송
    ×

6.00 1/1.8" f/8 75 - ∞ C-Mount #86-596 KRW 282,900   견적 요청
  • 3~5일내 배송
    ×

8.50 2/3" f/1.3 100 - ∞ C-Mount #86-599 KRW 210,500   견적 요청
  • 3~5일내 배송
    ×

8.50 2/3" f/1.8 100 - ∞ C-Mount #86-600 KRW 210,500   견적 요청
  • 3~5일내 배송
    ×

8.50 2/3" f/2.8 100 - ∞ C-Mount #86-601 KRW 210,500   견적 요청
  • 3~5일내 배송
    ×

8.50 2/3" f/4 100 - ∞ C-Mount #86-602 KRW 210,500   견적 요청
  • 3~5일내 배송
    ×

8.50 2/3" f/5.6 100 - ∞ C-Mount #86-603 KRW 210,500   견적 요청
  • 3~5일내 배송
    ×

8.50 2/3" f/8 100 - ∞ C-Mount #86-604 KRW 210,500   견적 요청
  • 3~5일내 배송
    ×

12.00 2/3" f/1.8 100 - ∞ C-Mount #86-607 KRW 210,500   견적 요청
  • 3~5일내 배송
    ×

12.00 2/3" f/2.8 100 - ∞ C-Mount #86-608 KRW 210,500   견적 요청
  • 3~5일내 배송
    ×

12.00 2/3" f/4 100 - ∞ C-Mount #86-609 KRW 210,500   견적 요청
  • 3~5일내 배송
    ×

12.00 2/3" f/5.6 100 - ∞ C-Mount #86-610 KRW 210,500   견적 요청
  • 3~5일내 배송
    ×

12.00 2/3" f/8 100 - ∞ C-Mount #86-611 KRW 210,500   견적 요청
  • 3~5일내 배송
    ×

12.00 2/3" f/11 100 - ∞ C-Mount #86-612 KRW 210,500   견적 요청
  • 3~5일내 배송
    ×

12.00 2/3" f/16 100 - ∞ C-Mount #86-613 KRW 210,500   견적 요청
  • 3~5일내 배송
    ×

16.00 2/3" f/1.6 100 - ∞ C-Mount #85-348 KRW 210,500   견적 요청
  • 3~5일내 배송
    ×

16.00 2/3" f/1.8 100 - ∞ C-Mount #85-349 KRW 210,500   견적 요청
  • 3~5일내 배송
    ×

16.00 2/3" f/2.8 100 - ∞ C-Mount #85-350 KRW 210,500   견적 요청
  • 3~5일내 배송
    ×

16.00 2/3" f/4 100 - ∞ C-Mount #85-351 KRW 210,500   견적 요청
  • 3~5일내 배송
    ×

16.00 2/3" f/5.6 100 - ∞ C-Mount #85-352 KRW 210,500   견적 요청
  • 3~5일내 배송
    ×

16.00 2/3" f/8 100 - ∞ C-Mount #85-353 KRW 210,500   견적 요청
  • 3~5일내 배송
    ×

16.00 2/3" f/11 100 - ∞ C-Mount #85-354 KRW 210,500   견적 요청
  • 3~5일내 배송
    ×

16.00 2/3" f/16 100 - ∞ C-Mount #85-336 KRW 210,500   견적 요청
  • 3~5일내 배송
    ×

25.00 2/3" f/1.4 100 - ∞ C-Mount #85-355 KRW 210,500   견적 요청
  • 3~5일내 배송
    ×

25.00 2/3" f/1.8 100 - ∞ C-Mount #85-356 KRW 210,500   견적 요청
  • 3~5일내 배송
    ×

25.00 2/3" f/2.8 100 - ∞ C-Mount #85-357 KRW 210,500   견적 요청
  • 3~5일내 배송
    ×

25.00 2/3" f/4 100 - ∞ C-Mount #85-358 KRW 210,500   견적 요청
  • 3~5일내 배송
    ×

25.00 2/3" f/5.6 100 - ∞ C-Mount #85-359 KRW 210,500   견적 요청
  • 3~5일내 배송
    ×

25.00 2/3" f/8 100 - ∞ C-Mount #85-360 KRW 210,500   견적 요청
  • 3~5일내 배송
    ×

25.00 2/3" f/11 100 - ∞ C-Mount #85-361 KRW 210,500   견적 요청
  • 3~5일내 배송
    ×

25.00 2/3" f/16 100 - ∞ C-Mount #85-337 KRW 210,500   견적 요청
  • 3~5일내 배송
    ×

35.00 2/3" f/1.65 100 - ∞ C-Mount #85-362 KRW 210,500   견적 요청
  • 3~5일내 배송
    ×

35.00 2/3" f/1.8 100 - ∞ C-Mount #85-363 KRW 210,500   견적 요청
  • 3~5일내 배송
    ×

35.00 2/3" f/2.8 100 - ∞ C-Mount #85-364 KRW 210,500   견적 요청
  • 3~5일내 배송
    ×

35.00 2/3" f/4 100 - ∞ C-Mount #85-365 KRW 210,500   견적 요청
  • 3~5일내 배송
    ×

35.00 2/3" f/5.6 100 - ∞ C-Mount #85-366 KRW 210,500   견적 요청
  • 3~5일내 배송
    ×

35.00 2/3" f/8 100 - ∞ C-Mount #85-367 KRW 210,500   견적 요청
  • 3~5일내 배송
    ×

35.00 2/3" f/11 100 - ∞ C-Mount #85-368 KRW 210,500   견적 요청
  • 3~5일내 배송
    ×

35.00 2/3" f/16 100 - ∞ C-Mount #85-338 KRW 210,500   견적 요청
  • 3~5일내 배송
    ×

50.00 2/3" f/2 250 - ∞ C-Mount #86-614 KRW 282,900   견적 요청
  • 3~5일내 배송
    ×

50.00 2/3" f/2.8 250 - ∞ C-Mount #86-615 KRW 282,900   견적 요청
  • 3~5일내 배송
    ×

50.00 2/3" f/4 250 - ∞ C-Mount #86-616 KRW 282,900   견적 요청
  • 3~5일내 배송
    ×

50.00 2/3" f/5.6 250 - ∞ C-Mount #86-617 KRW 282,900   견적 요청
  • 3~5일내 배송
    ×

50.00 2/3" f/8 250 - ∞ C-Mount #86-618 KRW 282,900   견적 요청
  • 3~5일내 배송
    ×

50.00 2/3" f/11 250 - ∞ C-Mount #86-619 KRW 282,900   견적 요청
  • 3~5일내 배송
    ×

50.00 2/3" f/16 250 - ∞ C-Mount #86-620 KRW 282,900   견적 요청
  • 3~5일내 배송
    ×

100.00 1" f/2.8 750 - ∞ C-Mount #15-508 KRW 345,000   견적 요청
  • 3~5일내 배송
    ×

100.00 1" f/4 750 - ∞ C-Mount #15-509 KRW 345,000   견적 요청
  • 3~5일내 배송
    ×

100.00 1" f/5.6 750 - ∞ C-Mount #15-510 KRW 345,000   견적 요청
  • 3~5일내 배송
    ×

100.00 1" f/8 750 - ∞ C-Mount #15-511 KRW 345,000   견적 요청
  • 품절/문의요망
    ×

100.00 1" f/11 750 - ∞ C-Mount #15-512 KRW 345,000   견적 요청
  • 3~5일내 배송
    ×

100.00 1" f/16 750 - ∞ C-Mount #15-513 KRW 345,000   견적 요청
  • 3~5일내 배송
    ×


해당 제품은 TECHSPEC® C 시리즈 렌즈의 간소화 버전입니다. TECHSPEC® C 시리즈 렌즈와 마찬가지로 렌즈 간의 변화(lens-to-lens variation)가 적고 BBAR 코팅 처리가 되어 있어 빛의 투과를 극대화하는 동시에 무게와 크기를 줄였습니다. 초점 조절 및 고정이 가능하므로 기기 결합에 가장 적합한 포커스 위치를 설정하여 고정할 수 있습니다. 해당 제품은 공장 검사 및 자동화부터 벤치탑 바이오메디컬 기기까지 다양한 어플리케이션에서의 대량 구매를 고려한 특수 설계가 적용되었습니다. 해당 제품은 다양한 조리개 옵션을 제공하므로 해상도, 처리량, 피사계 심도를 자유자재로 조절할 수 있습니다.

에드몬드옵틱스는 특정 어플리케이션에 맞는 고성능 광학 설계 제품군(C Series 제품군)을 제작하고 6가지 맞춤형 광기계 솔루션을 개발했습니다. 본 렌즈의 하위 제품군의 경우 어플리케이션 요건을 충족할 수 있도록 C Series 렌즈와 똑같은 광학 부품을 활용하여 여러 광기계 솔루션에서 동일한 광학 성능을 제공합니다.

  • C Series: 고정 카메라 초점 및 조리개 조절 기능이 특징이며, 이러한 광학 설계 중에서도 조절 기능이 뛰어난 대표적인 고품질 머신 비전 렌즈입니다. VIS-NIR BBAR 및 SWIR 코팅 처리가 가능합니다.
  • Ci Series: 컴팩트한 외관과 고정 조리개가 특징인 단순 기계식 구조를 갖습니다. 산업 등급의 강건설계가 적용되어 크기와 비용이 감소했고 고정 초점 기능을 제공합니다.
  • Cr Series: 모든 렌즈 요소를 고정 처리했으며 고정 C-클램프 포커스 링이 있습니다. 안정성 등급의 강건설계를 적용하여 픽셀 이동을 줄이고 초점 안정성을 개선했습니다.
  • Cx Series: 유연한 모듈식 메커니즘을 통해 렌즈를 분리하여 리퀴드 렌즈, 조리개 등의 액세서리와 쉽게 결합할 수 있습니다.
  • Liquid Lens Cx Series: 빠른 자동 초점 기능을 제공하는 리퀴드 렌즈가 통합되어 있도록 설계하였습니다.
  • Cw Series: IEC 방수방진 규정 중 IPX7 및 IPX9K 등급을 준수하도록 설계되었습니다.
제목 제품 비교하기재고 번호  가격(부가세 별도) 구입하기
Filter Adapter M25.5 x 0.50 from M22 x 0.75 (Female) #89-941 KRW 39,200   견적 요청
  • 3~5일내 배송
    ×
Filter Adapter M30.5 x 0.5 from M22 x 0.5 (Female) #89-932 KRW 47,900   견적 요청
  • 3~5일내 배송
    ×
Locking Retainer Nut for Ci Series Lenses #89-944 KRW 39,200   견적 요청
  • 3~5일내 배송
    ×
C-Mount to NF-Mount Adapter #89-945 KRW 39,200   견적 요청
  • 3~5일내 배송
    ×
C-Mount Front Attachment for 35mm Ci Series Lens #89-946 KRW 39,200   견적 요청
  • 3~5일내 배송
    ×

기술 정보

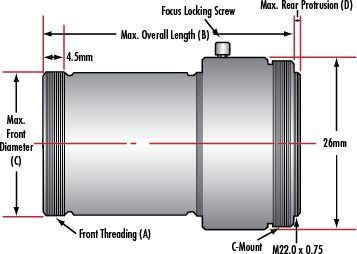

Dimensions
Focal Length A B C D
6mm M34.0 x 0.5 47.8mm 34mm 1.17mm
12mm M22.0 x 0.75 29.0mm 22mm 0.96mm
16mm M22.0 x 0.75 40.8mm 22mm 1.09mm
25mm M22.0 x 0.75 29.9mm 22mm 1.33mm
35mm M25.5 x 0.5 41mm 22.5mm 3.82mm
50mm M30.5 x 0.5 49.5mm 30.5mm 2.06mm
Filter

무반사(AR) 코팅

Anti-reflection (AR) coatings are applied to optical components to increase throughput and reduce hazards caused by back-reflections.
