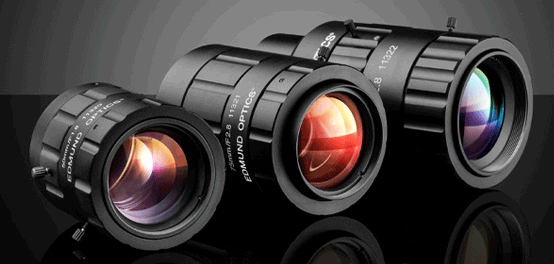

Cx Series Fixed Focal Length Lenses

TECHSPEC® Cx Series Fixed Focal Length Lenses

TECHSPEC® Cx Series Fixed Focal Length Lenses

TECHSPEC® Cx Series Fixed Focal Length Lenses 25mm Cx Series Fixed Focal Length Lens, #33-564 35mm Cx Series Fixed Focal Length Lens, #33-565 +4
×
  • 최대 2/3", C-마운트 렌즈
  • 최대 750만 화소, 2.8µm 픽셀 크기의 센서
  • 당사 C Series Lens의 Flexible 버전(Cx)으로 조리개, 필터 및 리퀴드 렌즈 교체 가능
  • 초점 거리: 12 - 50mm

공통 스펙

Iris Option:
Fixed
Filter Thread:
M25.5 x 0.50 (Male)
Filter Thread Adapter:
Maximum Rear Protrusion (mm):
0
Maximum Image Circle (mm):
11.00
Maximum Sensor Format:
2/3"
Mount:
C-Mount
Aperture (f/#):
Accessory Dependent
Coating:
425 - 675nm BBAR
Coating Specification:
425 - 675nm BBAR
Storage Temperature (°C):
-20 to +60 For questions regarding operating temperature please contact our support team
FL (mm) Max. Sensor Format  Aperture (f/#)  WD (mm)  Mount   제품 비교하기   재고 번호   가격(부가세 별도)  구입하기
12.00 2/3" Accessory Dependent 100 - ∞ C-Mount #33-562 KRW 252,500   견적 요청
  • 3~5일내 배송
    ×

16.00 2/3" Accessory Dependent 100 - ∞ C-Mount #33-563 KRW 252,500   견적 요청
  • 3~5일내 배송
    ×

25.00 2/3" Accessory Dependent 150 - ∞ C-Mount #33-564 KRW 252,500   견적 요청
  • 3~5일내 배송
    ×

35.00 2/3" Accessory Dependent 225 - ∞ C-Mount #33-565 KRW 252,500   견적 요청
  • 3~5일내 배송
    ×

50.00 2/3" Accessory Dependent 300 - 1,675 C-Mount #33-566 KRW 339,500   견적 요청
  • 3~5일내 배송
    ×


해당 제품은 여러 어플리케이션에 쉽게 통합할 수 있도록 간편함과 실용성을 고려하여 설계되었습니다. 모듈식 쓰리피스(3-piece) 구조로 정밀 고정 조리개, 내부 필터 홀더, 리퀴드 렌즈를 어셈블리와 결합할 수 있습니다. 이전보다 간소화된 포커스 메커니즘이 적용되어 있어 포커스 위치를 고정하는 잠금 너트 및 고정 나사 사용법이 간단합니다. 해당 제품은 머신 비전, 공장 자동화, R&D 등의 어플리케이션에 적합합니다. 조립 방법 및 설계 지원 관련해서 추가적인 문서가 필요하거나 궁금한 사항이 있으시면 사용 설명서와 렌즈 작동 매뉴얼을 확인하거나 기술 지원 담당자에게 문의하세요.

본 렌즈는 2016 Innovators Award에서 은상을 수상하고, 2017 Inspect Award에서 2위를 차지했습니다.

참고: 사용 시 액세서리 1개가 필요합니다. 액세서리로는 조리개, 필터 홀더, 리퀴드 렌즈 홀더 등이 있습니다. 리퀴드 렌즈 홀더는 Variable Focus Liquid Lens와 호환 가능합니다.

에드몬드옵틱스는 특정 어플리케이션에 맞는 고성능 광학 설계 제품군(C Series 제품군)을 제작하고 6가지 맞춤형 광기계 솔루션을 개발했습니다. 본 렌즈의 하위 제품군의 경우 어플리케이션 요건을 충족할 수 있도록 C Series 렌즈와 똑같은 광학 부품을 활용하여 여러 광기계 솔루션에서 동일한 광학 성능을 제공합니다.

  • C Series: 고정 카메라 초점 및 조리개 조절 기능이 특징이며, 이러한 광학 설계 중에서도 조절 기능이 뛰어난 대표적인 고품질 머신 비전 렌즈입니다. VIS-NIR BBAR 및 SWIR 코팅 처리가 가능합니다.
  • Ci Series: 컴팩트한 외관과 고정 조리개가 특징인 단순 기계식 구조를 갖습니다. 산업 등급의 강건설계가 적용되어 크기와 비용이 감소했고 고정 초점 기능을 제공합니다.
  • Cr Series: 모든 렌즈 요소를 고정 처리했으며 고정 C-클램프 포커스 링이 있습니다. 안정성 등급의 강건설계를 적용하여 픽셀 이동을 줄이고 초점 안정성을 개선했습니다.
  • Cx Series: 유연한 모듈식 메커니즘을 통해 렌즈를 분리하여 리퀴드 렌즈, 조리개 등의 액세서리와 쉽게 결합할 수 있습니다.
  • Liquid Lens Cx Series: 빠른 자동 초점 기능을 제공하는 리퀴드 렌즈가 통합되어 있도록 설계하였습니다.
  • Cw Series: IEC 방수방진 규정 중 IPX7 및 IPX9K 등급을 준수하도록 설계되었습니다.
제목 제품 비교하기재고 번호  가격(부가세 별도) 구입하기
Cx Lens Spanner Wrench #35-029 KRW 8,700   견적 요청
  • 3~5일내 배송
    ×
Liquid Lens Holder for 12mm Cx Lens #33-631 KRW 27,000   견적 요청
  • 3~5일내 배송
    ×
Liquid Lens Holder for 16mm Cx Lens #33-645 KRW 27,000   견적 요청
  • 3~5일내 배송
    ×
Liquid Lens Holder for 25mm Cx Lens #33-660 KRW 27,000   견적 요청
  • 3~5일내 배송
    ×
Liquid Lens Holder for 35mm Cx Lens #33-674 KRW 27,000   견적 요청
  • 3~5일내 배송
    ×
Small Liquid Lens Holder for 35mm Cx Lens #33-675 KRW 27,000   견적 요청
  • 3~5일내 배송
    ×
Liquid Lens Holder for 50mm Cx Lens #33-686 KRW 27,000   견적 요청
  • 3~5일내 배송
    ×
f/1.8 Filter Holder for 12mm Cx Lens #33-594 KRW 27,800   견적 요청
  • 3~5일내 배송
    ×
f/2.8 Filter Holder for 12mm Cx lens #33-595 KRW 27,800   견적 요청
  • 3~5일내 배송
    ×
f/4.0 Filter Holder for 12mm Cx Lens #33-596 KRW 27,800   견적 요청
  • 3~5일내 배송
    ×
f/5.6 Filter Holder for 12mm Cx Lens #33-597 KRW 27,800   견적 요청
  • 3~5일내 배송
    ×
f/8.0 Filter Holder for 12mm Cx Lens #33-598 KRW 27,800   견적 요청
  • 3~5일내 배송
    ×
f/11.0 Filter Holder for 12mm Cx Lens #33-599 KRW 27,800   견적 요청
  • 3~5일내 배송
    ×
f/16.0 Filter Holder for 12mm Cx Lens #33-600 KRW 27,800   견적 요청
  • 3~5일내 배송
    ×
f/1.8 Filter Holder for 16mm Cx Lens #33-601 KRW 27,800   견적 요청
  • 3~5일내 배송
    ×
f/2.8 Filter Holder for 16mm Cx lens #33-602 KRW 27,800   견적 요청
  • 3~5일내 배송
    ×
f/4.0 Filter Holder for 16mm Cx Lens #33-603 KRW 27,800   견적 요청
  • 3~5일내 배송
    ×
f/5.6 Filter Holder for 16mm Cx Lens #33-604 KRW 27,800   견적 요청
  • 3~5일내 배송
    ×
f/8.0 Filter Holder for 16mm Cx Lens #33-605 KRW 27,800   견적 요청
  • 3~5일내 배송
    ×
f/11.0 Filter Holder for 16mm Cx Lens #33-606 KRW 27,800   견적 요청
  • 3~5일내 배송
    ×
f/16.0 Filter Holder for 16mm Cx Lens #33-607 KRW 27,800   견적 요청
  • 3~5일내 배송
    ×
f/1.8 Filter Holder for 25mm Cx Lens #33-608 KRW 27,800   견적 요청
  • 3~5일내 배송
    ×
f/2.8 Filter Holder for 25mm Cx Lens #33-609 KRW 27,800   견적 요청
  • 3~5일내 배송
    ×
f/4.0 Filter Holder for 25mm Cx Lens #33-610 KRW 27,800   견적 요청
  • 3~5일내 배송
    ×
f/5.6 Filter Holder for 25mm Cx Lens #33-611 KRW 27,800   견적 요청
  • 3~5일내 배송
    ×
f/8.0 Filter Holder for 25mm Cx Lens #33-612 KRW 27,800   견적 요청
  • 3~5일내 배송
    ×
f/11.0 Filter Holder for 25mm Cx Lens #33-613 KRW 27,800   견적 요청
  • 3~5일내 배송
    ×
f/16.0 Filter Holder for 25mm Cx Lens #33-614 KRW 27,800   견적 요청
  • 3~5일내 배송
    ×
f/2.8 Filter Holder for 35mm Cx Lens #33-615 KRW 27,800   견적 요청
  • 3~5일내 배송
    ×
f/4.0 Filter Holder for 35mm Cx Lens #33-616 KRW 27,800   견적 요청
  • 3~5일내 배송
    ×
f/5.6 Filter Holder for 35mm Cx Lens #33-617 KRW 27,800   견적 요청
  • 3~5일내 배송
    ×
f/8.0 Filter Holder for 35mm Cx Lens #33-618 KRW 27,800   견적 요청
  • 3~5일내 배송
    ×
f/11.0 Filter Holder for 35mm Cx Lens #33-619 KRW 27,800   견적 요청
  • 3~5일내 배송
    ×
f/16.0 Filter Holder for 35mm Cx Lens #33-620 KRW 27,800   견적 요청
  • 3~5일내 배송
    ×
f/2.8 Filter Holder for 50mm Cx Lens #33-689 KRW 27,800   견적 요청
  • 3~5일내 배송
    ×
f/4.0 Filter Holder for 50mm Cx Lens #33-690 KRW 27,800   견적 요청
  • 3~5일내 배송
    ×
f/5.6 Filter Holder for 50mm Cx Lens #33-691 KRW 27,800   견적 요청
  • 3~5일내 배송
    ×
f/8.0 Filter Holder for 50mm Cx Lens #33-692 KRW 27,800   견적 요청
  • 3~5일내 배송
    ×
f/11 Filter Holder for 50mm Cx Lens #33-693 KRW 27,800   견적 요청
  • 3~5일내 배송
    ×
f/16 Filter Holder for 50mm Cx Lens #33-694 KRW 27,800   견적 요청
  • 3~5일내 배송
    ×
f/1.8 Aperture for 12mm Cx Lens #33-624 KRW 8,700   견적 요청
  • 3~5일내 배송
    ×
f/2.8 Aperture for 12mm Cx Lens #33-625 KRW 8,700   견적 요청
  • 3~5일내 배송
    ×
f/4.0 Aperture for 12mm Cx Lens #33-626 KRW 8,700   견적 요청
  • 3~5일내 배송
    ×
f/5.6 Aperture for 12mm Cx Lens #33-627 KRW 8,700   견적 요청
  • 3~5일내 배송
    ×
f/8.0 Aperture for 12mm Cx Lens #33-628 KRW 8,700   견적 요청
  • 3~5일내 배송
    ×
f/11.0 Aperture for 12mm Cx Lens #33-629 KRW 8,700   견적 요청
  • 3~5일내 배송
    ×
f/16.0 Aperture for 12mm Cx Lens #33-630 KRW 8,700   견적 요청
  • 3~5일내 배송
    ×
f/1.5 Aperture for 16mm Cx Lens #33-637 KRW 8,700   견적 요청
  • 3~5일내 배송
    ×
f/1.8 Aperture for 16mm Cx Lens #33-638 KRW 8,700   견적 요청
  • 3~5일내 배송
    ×
f/2.8 Aperture for 16mm Cx Lens #33-639 KRW 8,700   견적 요청
  • 3~5일내 배송
    ×
f/4.0 Aperture for 16mm Cx Lens #33-640 KRW 8,700   견적 요청
  • 3~5일내 배송
    ×
f/5.6 Aperture for 16mm Cx Lens #33-641 KRW 8,700   견적 요청
  • 3~5일내 배송
    ×
f/8.0 Aperture for 16mm Cx Lens #33-642 KRW 8,700   견적 요청
  • 3~5일내 배송
    ×
f/11.0 Aperture for 16mm Cx Lens #33-643 KRW 8,700   견적 요청
  • 3~5일내 배송
    ×
f/16.0 Aperture for 16mm Cx Lens #33-644 KRW 8,700   견적 요청
  • 3~5일내 배송
    ×
f/1.8 Aperture for 25mm Cx Lens #33-653 KRW 8,700   견적 요청
  • 3~5일내 배송
    ×
f/2.8 Aperture for 25mm Cx Lens #33-654 KRW 8,700   견적 요청
  • 3~5일내 배송
    ×
f/4.0 Aperture for 25mm Cx Lens #33-655 KRW 8,700   견적 요청
  • 3~5일내 배송
    ×
f/5.6 Aperture for 25mm Cx Lens #33-656 KRW 8,700   견적 요청
  • 3~5일내 배송
    ×
f/8.0 Aperture for 25mm Cx Lens #33-657 KRW 8,700   견적 요청
  • 3~5일내 배송
    ×
f/11.0 Aperture for 25mm Cx Lens #33-658 KRW 8,700   견적 요청
  • 3~5일내 배송
    ×
f/16.0 Aperture for 25mm Cx Lens #33-659 KRW 8,700   견적 요청
  • 3~5일내 배송
    ×
f/1.65 Aperture for 35mm Cx Lens #33-666 KRW 8,700   견적 요청
  • 3~5일내 배송
    ×
f/1.8 Aperture for 35mm Cx Lens #33-667 KRW 8,700   견적 요청
  • 3~5일내 배송
    ×
f/2.8 Aperture for 35mm Cx Lens #33-668 KRW 8,700   견적 요청
  • 3~5일내 배송
    ×
f/4.0 Aperture for 35mm Cx Lens #33-669 KRW 8,700   견적 요청
  • 3~5일내 배송
    ×
f/5.6 Aperture for 35mm Cx Lens #33-670 KRW 8,700   견적 요청
  • 3~5일내 배송
    ×
f/8.0 Aperture for 35mm Cx Lens #33-671 KRW 8,700   견적 요청
  • 3~5일내 배송
    ×
f/11.0 Aperture for 35mm Cx Lens #33-672 KRW 8,700   견적 요청
  • 3~5일내 배송
    ×
f/16.0 Aperture for 35mm Cx Lens #33-673 KRW 8,700   견적 요청
  • 3~5일내 배송
    ×
f/2.0 Aperture for 50mm Cx Lens #33-679 KRW 8,700   견적 요청
  • 3~5일내 배송
    ×
f/2.8 Aperture for 50mm Cx Lens #33-680 KRW 8,700   견적 요청
  • 3~5일내 배송
    ×
f/4.0 Aperture for 50mm Cx Lens #33-681 KRW 8,700   견적 요청
  • 3~5일내 배송
    ×
f/5.6 Aperture for 50mm Cx Lens #33-682 KRW 8,700   견적 요청
  • 3~5일내 배송
    ×
f/8.0 Aperture for 50mm Cx Lens #33-683 KRW 8,700   견적 요청
  • 3~5일내 배송
    ×
f/11 Aperture for 50mm Cx Lens #33-684 KRW 8,700   견적 요청
  • 3~5일내 배송
    ×
f/16 Aperture for 50mm Cx Lens #33-685 KRW 8,700   견적 요청
  • 3~5일내 배송
    ×
Cx Lens Assembly Diagram
Cx Lens Assembly Diagram

기술 정보

Liquid Lens Holder Accessory (Liquid Lens Not Included)
  12mm 16mm 25mm 35mm 35mm 50mm
Compatible Liquid Lens A-25H0 A-25H0 A-25H0 A-25H0 A-39N0 A-39N0
Compatible Liquid Lens Stock No. #34-282 #34-282 #34-282 #34-282 #34-283 #34-283
Compatible Liquid Lens Development Kit #34-284 #34-284 #34-284 #34-284 #34-285 #34-285
Liquid Lens Holder Stock No. #33-631 #33-645 #33-660 #33-675 #33-674 #33-686

리퀴드 렌즈와 Cx 렌즈 결합하기

1단계: Cx 렌즈의 초점 거리와 호환되는 가변 초점 리퀴드 렌즈 및 리퀴드 렌즈 홀더를 선택합니다. 아니면 Cx 렌즈와 호환되는 가변 초점 리퀴드 렌즈 및 리퀴드 렌즈 홀더가 포함된 적절한 Cx 렌즈 키트를 선택합니다.

2단계: 가변 초점 리퀴드 렌즈를 리퀴드 렌즈 홀더에 장착한 후 이를 Cx 렌즈의 중간부에 끼웁니다. 조립 방법이 담긴 전체 매뉴얼은 당사 웹사이트에서 PDF 파일로 다운받으실 수 있습니다.

3단계, 옵션 1: PixeLink USB 3.0 Autofocus Camera에 리퀴드 렌즈를 연결합니다. 이 카메라는 드라이버와 자동 초점 소프트웨어가 모두 포함되어 있어 원활한 시스템 통합이 가능합니다.

3단계, 옵션 2: 표준 C-마운트 카메라와 함께 사용합니다. 드라이버는 포함되어 있지 않으므로 리퀴드 렌즈 드라이버를 별도로 구매해야 합니다. 단, Liquid Lens Development Kit에는 드라이버가 포함되어 있습니다.



Filter

무반사(AR) 코팅

Anti-reflection (AR) coatings are applied to optical components to increase throughput and reduce hazards caused by back-reflections.

바로 보기

광학 코팅 개론

Optical coatings are used to influence the transmission, reflection, or polarization properties of an optical component.

바로 보기

Wavelength and f#

This demonstration exemplifies why wavelength and f/# can drastically affect the performance of imaging systems and should not be overlooked.

바로 보기

Working Distance and Focal Length Basics

Working distance and focal length are two of the most fundamental parameters of any imaging system. Learn more in this hands-on video demo.

바로 보기

Focal Length 및 Field of View 이해하기

Learn how to understand focal length and field of view for imaging lenses through calculations, working distance, and examples at Edmund Optics.

바로 보기

Lens Performance Curves

Are you trying to measure the performance of your lens? Although this can be a difficult task, there are curves that can help. Read more at Edmund Optics.

바로 보기

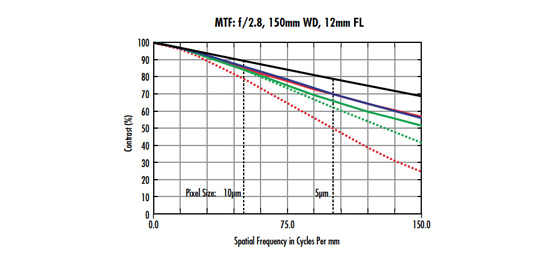

Introduction to Modulation Transfer Function

Want to know more about the Modular Transfer Function? Learn about the components, understanding, importance, and characterization of MTF at Edmund Optics.

바로 보기

Liquid Lens M12 Imaging Lenses

TECHSPEC® Liquid Lens M12 Imaging Lenses from Edmund Optics combine a high-resolution with the electronic auto-focus of an integrated liquid lens

바로 보기

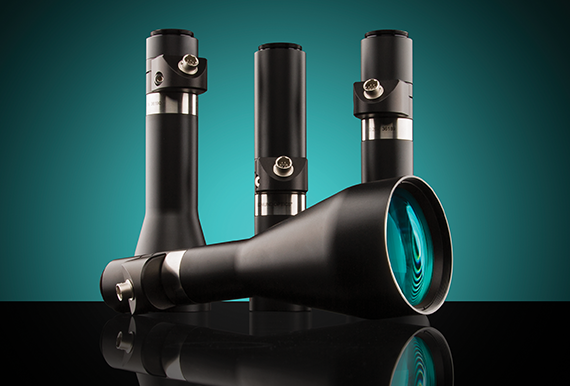

Liquid Lens Cx Series Fixed Focal Length Lenses

TECHSPEC® Liquid Lens Cx Series Fixed Focal Length Lenses from Edmund Optics offer both high resolution and fast electronic focus.

바로 보기

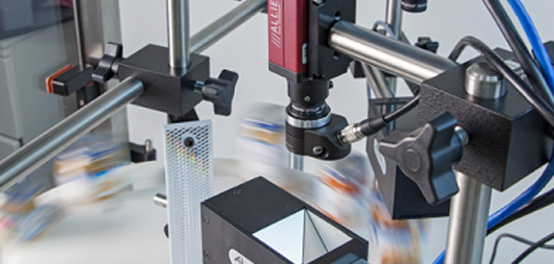

Trending Liquid Lenses in Imaging

Quickly Autofocus and Overcome Depth of Field Limitations

바로 보기

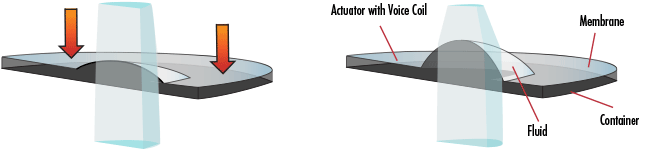

Liquid Lens Features, Applications, and Technology

Liquid lenses have many features, are small in size, and adjust focus quickly to adapt to objects located at various working distances. Learn more at Edmund Optics.

바로 보기

Liquid Lens 개론

Imaging lens performance can be enhanced with the use of liquid lenses. Learn more at Edmund Optics.

바로 보기

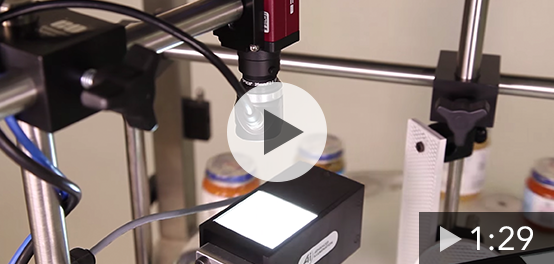

Understanding Liquid Lens Technology

Liquid lenses can be used to maximize imaging system flexibility across a wide variety of applications requiring rapid focusing.

바로 보기

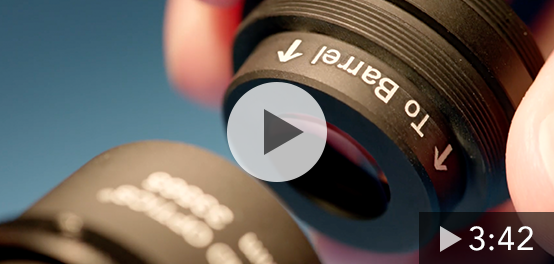

Liquid Lens Cx Series Lens 조립 과정

Learn how to insert a liquid lens into a modular TECHSPEC Liquid Lens Cx Series Fixed Focal Length Lens Assembly from Edmund Optics.

바로 보기

Liquid Lenses in Machine Vision - TRENDING IN OPTICS: EPISODE 1

Liquid Lenses electronically autofocus imaging systems for machine vision by changing shape in response to an applied current or voltage.

바로 보기

When to integrate liquid lenses into machine vision optics

Can I integrate a liquid lens into another type of lens, such as a fixed focal length lens?

How quickly can liquid lenses change between different focus positions?

MercuryTL™ Liquid Lens Telecentric Lenses

MercuryTL™ Liquid Lens Telecentric Lenses

바로 보기

MercuryTL™ Liquid Lens Telecentric Lenses

The TECHSPEC® MercuryTL™ Liquid Lens Telecentric Lenses combine the parallax error correction and high image quality of a telecentric lens with the flexibility of an integrated liquid lens.

바로 보기

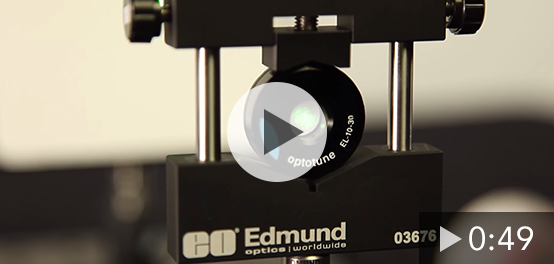

Optotune Focus-Tunable Lenses Review

Optotune Focus-Tunable lenses feature a liquid polymer substrate with continuous focusability.

바로 보기

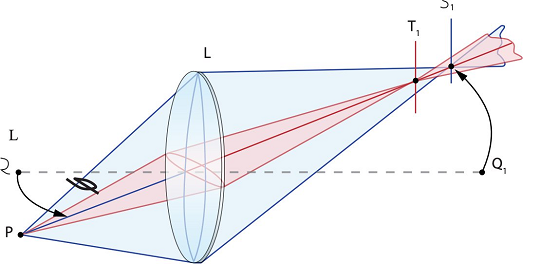

광학 수차의 비교

Trying to understand optical aberrations? Check out how to identify aberrations and view examples at Edmund Optics.

바로 보기

렌즈 설계에서 MTF의 수차 보정

Do you have multiple projects that involve the use of a lens? Find out about different lenses that can be adapted for multiple purposes at Edmund Optics.

바로 보기

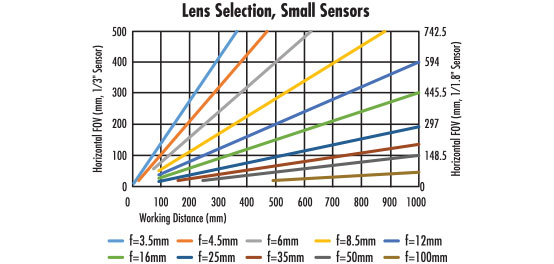

Basic Lens Selection

이미징 렌즈 선택 가이드

Fixed focal length, zoom, and macro lenses are all variable magnification lenses. Learn more at Edmund Optics.

바로 보기

Lens Spacers, Shims & Focal Length Extenders

Want to learn how to extend a lens beyond its limits in an application? Learn more about spacers, shims, and focal length extenders at Edmund Optics.

바로 보기

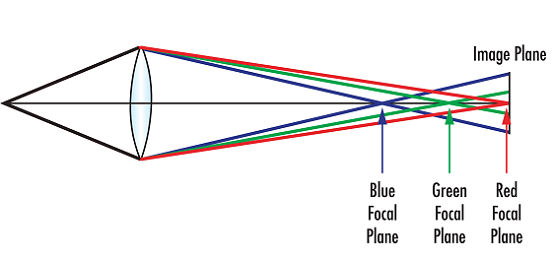

MTF Curves and Lens Performance

Explore the differences in the performance of imaging lenses by directly comparing the associated modulation transfer function (MTF) curves.

바로 보기

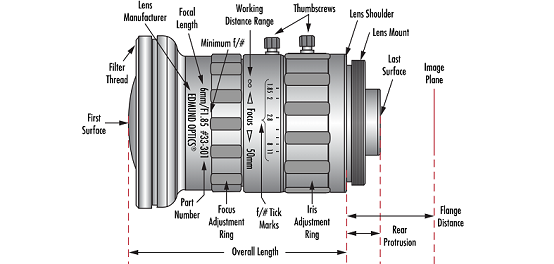

The Anatomy of a Lens

Become familiarized with the key components of an imaging lens assembly and how they function.

바로 보기

Modulation Transfer Function (MTF) 및 MTF Curve

MTF curves allow you to compare the performance of multiple lenses at the same time. To find out how MTF curves are beneficial, read more at Edmund Optics.

바로 보기

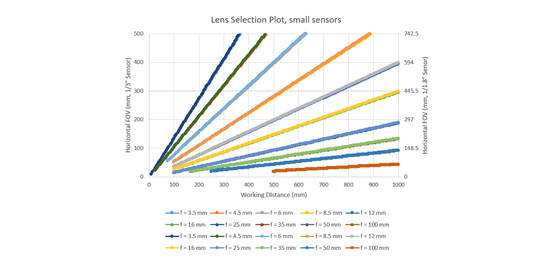

Variable Magnification Lens 선정 방법

To decide what imaging lens is right for a system, it is important to know the parameters of the imaging system used. Learn more at Edmund Optics.

바로 보기

Fixed Magnification Lens 선정 방법

Fixed magnification lenses typically function properly at a single working distance and are specified by their magnification. Learn more at Edmund Optics.

바로 보기

Resolution을 기반으로 한 렌즈 선별 – 고급

The modulation transfer function of a lens varies depending on working distance, sensor size, f/#, and wavelength. Learn more at Edmund Optics.

바로 보기

EO Imaging Lab 모듈 3.8: 차후 모듈에 대한 간단한 소개

Learn how to specify imaging system components.

바로 보기

Best Practice #1 Bigger is Better

Join Greg Hollows, Director of the Imaging Business Unit and EO's Imaging Expert, as he reviews some Best Practice to consider when designing an imaging system.

바로 보기

Best Practice #2 Don't Believe Your Eyes

Join Greg Hollows, Director of the Imaging Business Unit and EO's Imaging Expert, as he reviews some Best Practice to consider when designing an imaging system.

바로 보기

Best Practice #3 Don't Get Too Close

Join Greg Hollows, Director of the Imaging Business Unit and EO's Imaging Expert, as he reviews some Best Practice to consider when designing an imaging system.

바로 보기

Best Practice #7 No Universal Solution

Join Greg Hollows, Director of the Imaging Business Unit and EO's Imaging Expert, as he reviews some best practices to consider when designing an imaging system.

바로 보기

Best Practice #9 Be A Control Freak

Join Greg Hollows, Director of the Imaging Business Unit and EO's Imaging Expert, as he reviews some best practices to consider when designing an imaging system.

바로 보기

Best Practice #10 Be The Squeaky Wheel

Join Greg Hollows, Director of the Imaging Business Unit and EO's Imaging Expert, as he reviews some best practices to consider when designing an imaging system.

바로 보기

Best Practice #11 Make A List

Join Greg Hollows, Director of the Imaging Business Unit and EO’s Imaging Expert, as he reviews some best practices to consider when designing an imaging system.

바로 보기

The Impact of Distortion

Nick Sischka explains distortion in this hands-on demonstration from the Edmund Optics 2021 Imaging Innovation Summit.

바로 보기

Calculating Lens Resolution with Precision

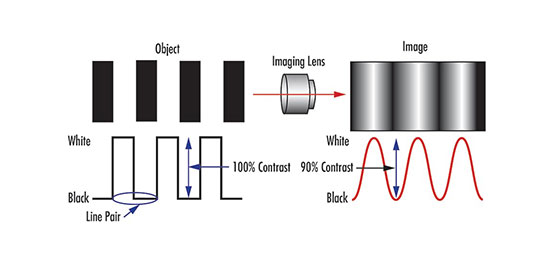

Deciphering Lens Specifications and Choosing the Proper Lens

A Closer Look at Resolution Testing

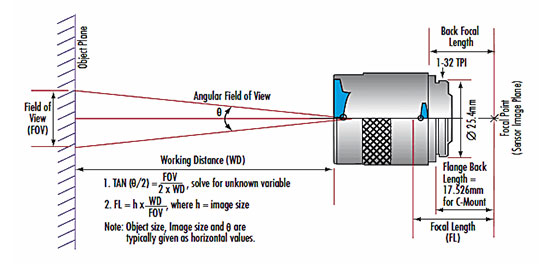

I’ve been using the thin lens approximation to calculate the minimum object distance and field of view of an imaging lens and camera I have, is there a simple formula for estimating these parameters?

How do I know what lens mount is best to use for my imaging or vision system?

What are M12 (S-Mount) lenses?

M12 or S-Mount lenses are a type of compact imaging lens used in space-constrained applications.

바로 보기

What is an MVO Double Gauss imaging lens?

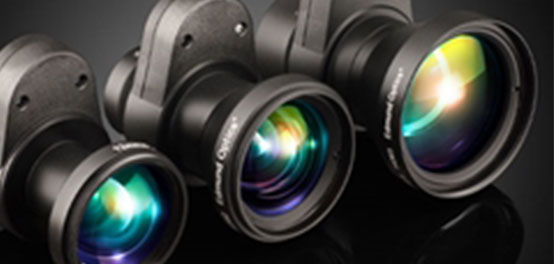

What are fixed focal length lenses?

Fixed focal length lenses are entocentric imaging lenses used in machine vision.

바로 보기

What different types of fixed focal length lenses does Edmund Optics offer?

Edmund Optics designs and manufacturers many types of imaging lenses.

바로 보기

What different types of fixed focal length lenses does Edmund Optics offer?

Imaging lenses feature a wide variety of lens mounts, all of which offer different benefits.

바로 보기

Angular Field of View (AFOV)

Aperture (f/#)

Aperture Stop (구경 조리개)

Entrance Pupil(입사 동공)

Exit Pupil(사출 동공)

Field

Field Efficiency

Fixed Focal Length Lens

F-Mount

Image Circle

Line Pair (lp)

Vignetting

Working Distance (WD)

Working f/#

Zoom(확대)

Imaging System Parameter Calculator

Imaging Lens Selector

Sensors and Lenses

Imaging lenses and sensors must be paired together with special attention.

바로 보기

이미징 시스템의 6가지 기본 변수

Want to understand the basic concepts of imaging? Learn more about essential terms and how they incorporate in the imaging industry at Edmund Optics.

바로 보기

Contrast

Is the definition on your image not clear? Go back to the basics and learn more about the contrast of an image and its importance at Edmund Optics.

바로 보기

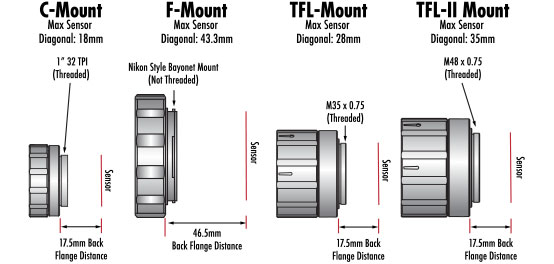

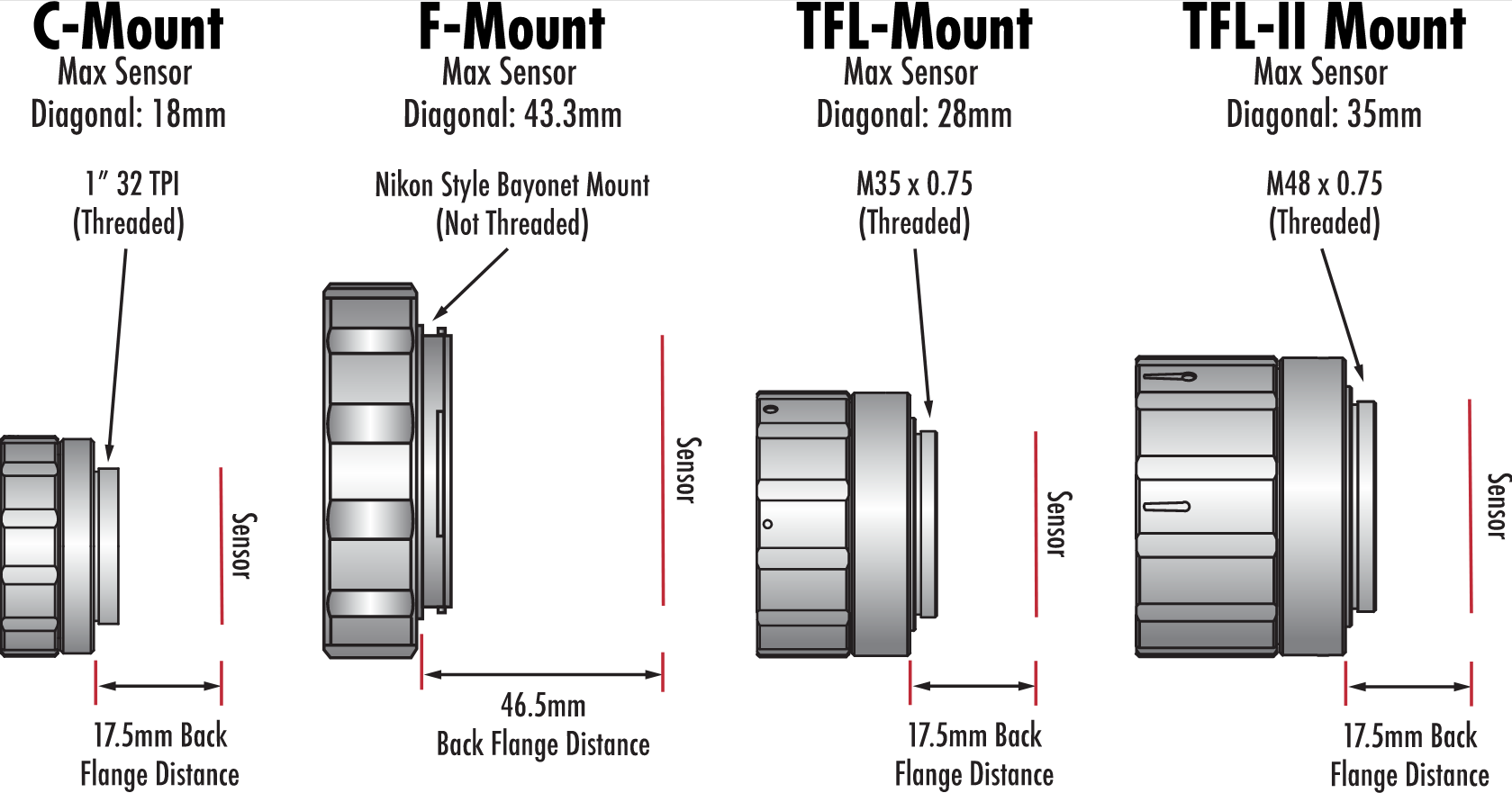

Lens Mounts

There are numerous mount types for connecting an imaging lens to a camera. Depending on the application, some mounts are more useful than others.

바로 보기

Distortion

Distortion is an individual aberration that misplaces information but can be calculated or mapped out of an image. Learn more about distortion at Edmund Optics.

바로 보기

f/# (Lens Iris/Aperture 설정)

When it comes to your lens, the f/# is one of the most important settings because it controls multiple parameters. Find out what the f/# controls at Edmund Optics.

바로 보기

Filtering in Machine Vision

While working with machine vision, there are different types of filters that can be used to alter the image. Find out about the different types at Edmund Optics.

바로 보기

렌즈부터 센서까지:정보 수집의 한계

Trying to understand how much information you can obtain from a lens and sensor? Learn more about the limitations of collecting data at Edmund Optics.

바로 보기

렌즈 배율

Are you new to imaging and want to learn more about lens magnification? Learn more about lens magnification and other key imaging concepts at Edmund Optics.

바로 보기

센서의 상대 조도, Roll Off 및 Vignetting

In order to understand vignetting, it is important to understand sensor sizes, formats, and roll-off and relative illumination. Find out more at Edmund Optics.

바로 보기

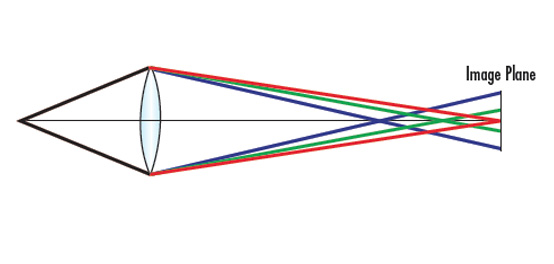

파장이 성능에 미치는 영향

Wavelengths can be both valuable or hazardous when trying to obtain information from an imaging system. Learn more about fixing wavelength issues at Edmund Optics.

바로 보기

Depth of Field 및 Depth of Focus

Are you getting depth of field and depth of focus confused? Discover the differences and how to distinguish the two from one another at Edmund Optics.

바로 보기

Why Should I Use a Lens Designed Specifically for SWIR Wavelengths?

Short wave infrared (SWIR) imaging applications require specialized imaging optics, as lenses designed for visible use are not optimized for SWIR wavelengths

바로 보기

EO의 이미징 렌즈 제작 방식

Imaging lens assemblies are vital components for a wide range of cutting edge applications including machine vision, biomedical instruments, factory automation, and robotics.

바로 보기

Imaging Innovation Summit Keynote

Master the mindset needed for building an imaging system from asking the right questions to properly combining imaging technologies.

바로 보기

EO Imaging Lab 모듈 1: 이미징 개요

Learn how to specify imaging system components.

바로 보기

Edmund Optics Imaging: Telecentric Lenses versus Hypercentric Lenses

Join EO's Nick Sischka, Director of Imaging, as he inspects pipes for various defects using the TECHSPEC Telecentric Lens versus the TECHSPEC Hypercentric Lens.

바로 보기

Best Practice #4 Light Up Your Life

Join Nick Sischka, Vision Solutions Specialist and member of EO's Imaging Team, as he reviews some best practices to consider when designing an imaging system

바로 보기

LIGHT TALK - EPISODE 2: Increasing Imaging Sensor Sizes with Katie Schwertz

Join our discussion about increasing imaging sensor sizes and what that means for optical designers in the second episode of our LIGHT TALKS series.

바로 보기

LIGHT TALK - EPISODE 5: Ruggedized Imaging Lenses with Cory Boone and Ben Weaver

The expansion of automation has made the ruggedization of imaging lenses from shocks, vibrations, and temperature swings more important than ever before.

바로 보기

Ruggedized Imaging Systems – TRENDING IN OPTICS: EPISODE 9

A new generation of harsh environment lenses has been developed to support the spread of automation and protect their imaging systems.

바로 보기

Manipulating Wavebands: Color & Filters

Nick Sischka explains why color consideration and illumination are so important for machine vision in this hands-on demonstration from the Edmund Optics 2021 Imaging Innovation Summit.

바로 보기

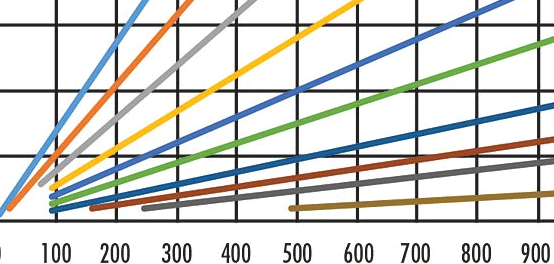

Lens Selection Guide, Part 2

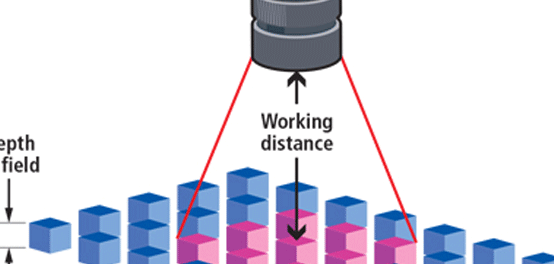

The makings of a successful imaging lens, Part Three: Testing and metrology, ensuring you get what you asked for

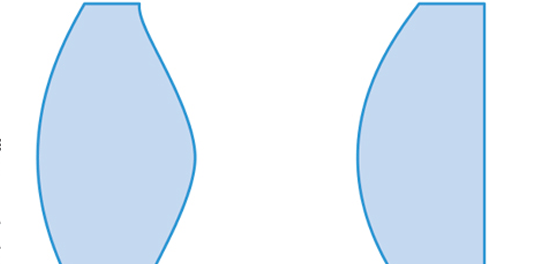

The makings of a successful imaging lens, Part Two: Performance-based specifications and their design considerations

The makings of a successful imaging lens, Part One: Application and specification development

Vision & Sensors Lens Selection Guide, Part 1

What is the difference between Primary Magnification and System Magnification?

I need a video lens for my camera - but where do I start?

What is the difference between depth of field and depth of focus?

Which type of colored filter is best for my imaging application?

Back Flange Distance

Depth of Field (DOF)

Depth of Focus (초점 심도)

Distortion (왜곡)

Distortion, Non-Monotonic

Field Curvature(상면 만곡)

Focal Length Extender

Horizontal Resolution

Hyperfocal Distance(과초점 거리)

Primary Magnification (PMAG)

Relative Illumination (RI)

S-Mount

Sliding Focusing Mechanism

T-Mount

고품질의 이미지를 얻기 위한 11가지 베스트 예제

Do you use imaging systems constantly in your professional field? Learn top tips for improving your imaging system and practices at Edmund Optics.

바로 보기

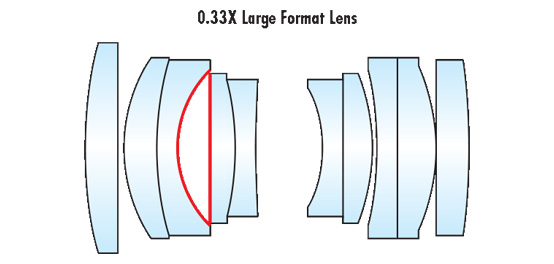

Machine Vision 렌즈에 미치는 수차의 영향

Need help understanding aberration theory? Learn about a few fundamental concepts to help clarify your understanding at Edmund Optics.

바로 보기

What is Imaging?

In imaging, light rays are mapped from an object onto an imaging sensor by an imaging lens, to reproduce the characteristics and likeness of the object for the purposes of inspection, sorting, or analysis.

바로 보기

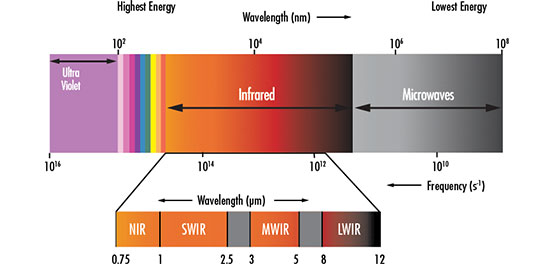

SWIR 이란?

Have a question about short-wave infrared (SWIR)? Find definitions, application uses, and examples at Edmund Optics.

바로 보기

Resolution and MTF Testing

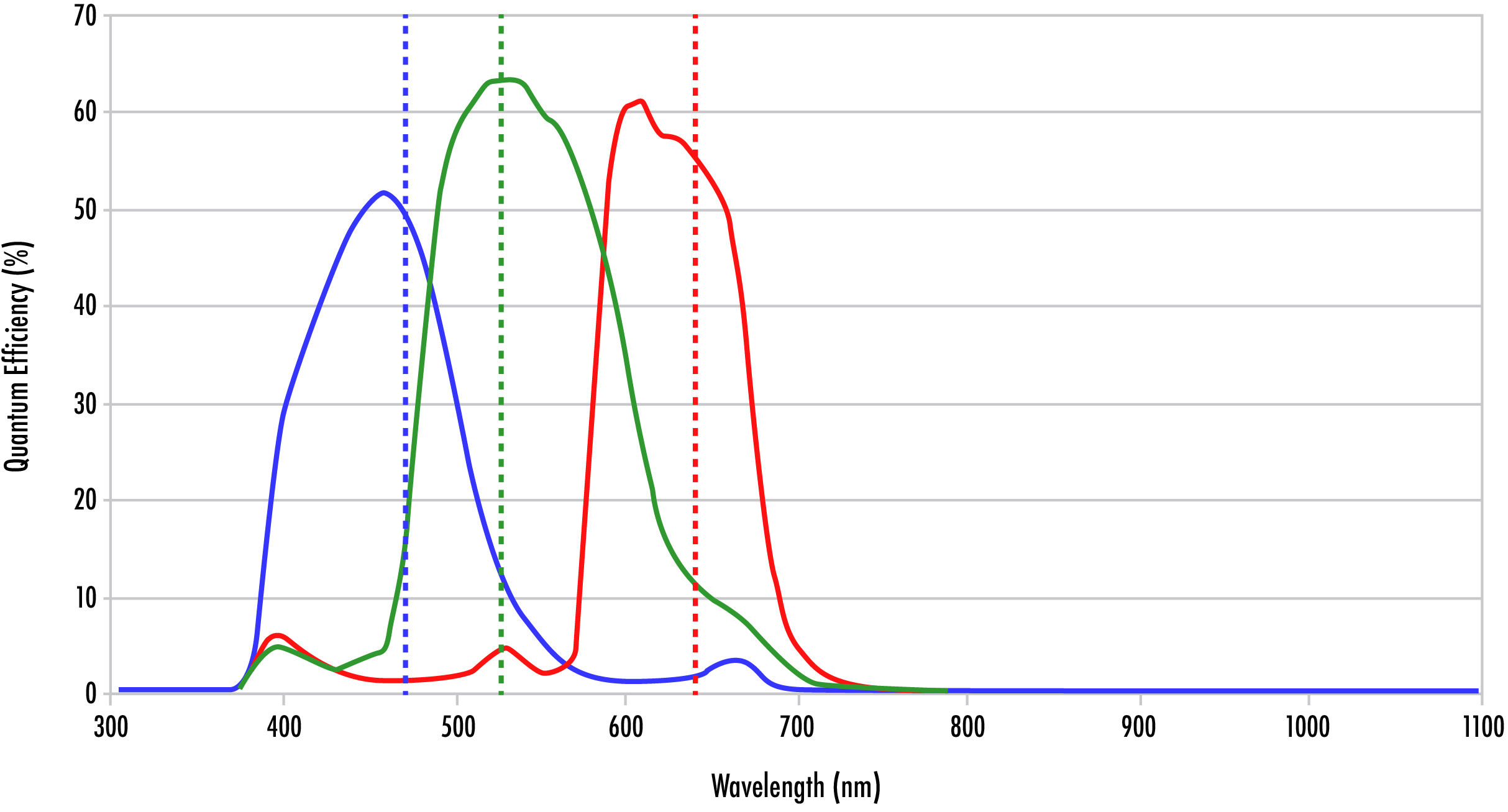

Hyperspectral and Multispectral Imaging

Are you trying to gauge depth of field in your imaging system? Take a closer look at this article on depth of field calculations at Edmund Optics.

바로 보기

Resolution 및 Contrast의 한계: The Airy Disk

The diffraction pattern caused when light passes through an aperture is called the Airy Disk. Find out how the Airy Disk can impact your image at Edmund Optics.

바로 보기

Lens Types, Resolution, and Sensor Coverage

No imaging lens is the ideal choice for every type of imaging sensor, as multiple tradeoffs must be weighed and prioritized for every application.

바로 보기

Axial and Lateral Chromatic Aberration

Chromatic aberrations impact the performance of imaging systems in many different ways, as exemplified in this hands-on demonstration.

바로 보기

EO Imaging Lab 모듈 1.1: Field of View

Learn how to specify imaging system components.

바로 보기

EO Imaging Lab Module 1.2: Working Distance

EO Imaging Lab 모듈 1.5: 센서 사이즈

Learn how to specify imaging system components.

바로 보기

EO Imaging Lab 모듈 3.2: 조명 형태의 W

Learn how to specify imaging system components.

바로 보기

EO Imaging Lab 모듈 3.3: Directional Illumination

Learn how to specify imaging system components.

바로 보기

EO Imaging Lab Module 3.4: Directional Illumination of Ring Lights

Learn how to specify imaging system components.

바로 보기

EO Imaging Lab 모듈 3.5: 백라이트

Learn how to specify imaging system components.

바로 보기

EO Imaging Lab 모듈 3.6: Dome Lights

Learn how to specify imaging system components.

바로 보기

EO Imaging Lab 모듈 3.7: Line Lights

Learn how to specify imaging system components.

바로 보기

Best Practice #5 Color Matters

Join Nick Sischka, Vision Solutions Specialist and member of EO's Imaging Team, as he reviews some best practices to consider when designing an imaging system.

바로 보기

Best Practice #6 There Can Be Only One

Join Nick Sischka, Director of Imaging, as he reviews some best practices to consider when designing an imaging system.

바로 보기

LIGHT TALK - EPISODE 1: Machine Vision Trends with Nick Sischka

Join our discussion around machine vision trends including such as increasing resolution and new sensors in the first episode of our LIGHT TALKS series.

바로 보기

초분광 & 다중분광 이미징 – 트렌드 in 광학: 에피소드 7

Hyperspectral and multispectral imaging are imaging technologies that capture information from a broader portion of the electromagnetic spectrum.

바로 보기

Next generation image sensors: Are suppliers ready to meet growing customer expectations?

If I want to design with your lenses and lens assemblies, how do I get the information that I need?

Contrast(대비)

Spatial Frequency

Resolution과 Contrast 비교

Learn how Edmund Optics maintains optical performance across the entire image plane through this resolution and contrast comparison using our C Series FFL lens.

바로 보기

EO Imaging Lab 모듈 1.4: Depth of Field

Learn how to specify imaging system components.

바로 보기

EO Imaging Lab 모듈 1.7: Contrast에 대한 자세한 설명

Learn how to specify imaging system components.

바로 보기

Diffraction Limit (회절 제한)

Modulation Transfer Function (MTF)

Nyquist Limit

Parfocality

Resolution

Resolving Power

Resolution

Do you want to understand how a lens works? To do so, you must learn key terms for how the lens functions, including resolution. Find out more at Edmund Optics.

바로 보기

EO Imaging Lab 모듈 1.3: Resolution

Learn how to specify imaging system components.

바로 보기

EO Imaging Lab 모듈 1.6: Resolution에 대한 자세한 설명

Learn how to specify imaging system components.

바로 보기

EO Imaging Lab 모듈 1.8: Depth of Field에 대한 자세한 설명

Learn how to specify imaging system components.

바로 보기

EO Imaging Lab 모듈 2: 계측 정확성 개요

Learn how to specify imaging system components.

바로 보기

EO Imaging Lab 모듈 2.1: Distortion

Learn how to specify imaging system components.

바로 보기

EO Imaging Lab 모듈 2.2: Telecentricity

Learn how to specify imaging system components.

바로 보기

EO Imaging Lab 모듈 3: 조명 개요

Learn how to specify imaging system components.

바로 보기

EO Imaging Lab 모듈 3.1: 조명 개념에 대한 소개

Learn how to specify imaging system components.

바로 보기

How I do select the correct testing target for my electronic imaging system (camera & lens)?

C-Mount

Field of View (FOV)

Magnification(확대)

Numerical Aperture (NA, 개구수)

2011 Telecentric Bell 연

The Future Depends on Optics®

바로 보기

What is an "in-line" video system?

Edmund Optics Imaging Comparison: Why Optics Matter

The success of your machine vision application depends on the quality of your optical components.

바로 보기

EO의 글로벌 제조 설비

Edmund Optics® (EO) manufactures millions of precision optical components and subassemblies every year in our 5 global manufacturing facilities.

바로 보기

에드몬드 옵틱스의 계측 기술: 핵심 부품 제조 시 계측 공정

Learn about the metrology that Edmund Optics® uses to guarantee the quality of all optical components and assemblies.

바로 보기

Refraction


영업 & 기술 지원

본사 및 지사별 연락처 확인하기
빠른
견적 요청 도구
재고 번호 입력 필요
