λ/20 High Power Laser Line Windows

Uncoated λ/20 Fused Silica Window

×
  • 266nm, 355nm, 532nm, 1064nm 옵션 이용 가능
  • 낮은 자가형광
  • 1064nm, 10ns에서 최대 10 J/cm2의 손상 임계치

공통 스펙

Angle of Incidence (°):
0
Bevel:
Protective as needed
Thickness (mm):
3.00 ±0.10
Parallelism (arcsec):
≤5
Substrate:
Fused Silica Excimer Grade (Corning 7980 KrF)
Fused Silica Grade:
7980 KrF 0A
Surface Quality:
10-5
Transmitted Wavefront, P-V:
λ/20
Young's Modulus (GPa):
73
Coefficient of Thermal Expansion CTE (10-6/°C):
0.52 (+5 to +35°C)
0.57 (0 to +200°C)
0.48 (-100 to +200°C)
Density (g/cm3):
2.20
Index of Refraction nd:
1.458
Poisson's Ratio:
0.16
Abbe Number (vd):
67.8
Edges:
Fine Ground
 Coating  Dia. (mm)  Thickness (mm)  DWL (nm)  제품 비교하기   재고 번호   가격(부가세 별도)  구입하기
Uncoated 5.00 3.00 - #65-850 KRW 177,600 수량 6+ KRW 160,200   견적 요청
  • 3~5일내 배송
    ×

Uncoated 10.00 3.00 - #65-855 KRW 177,600 수량 6+ KRW 160,200   견적 요청
  • 3~5일내 배송
    ×

Uncoated 20.00 3.00 - #65-860 KRW 195,800 수량 6+ KRW 176,200   견적 요청
  • 품절/문의요망
    ×

Uncoated 50.00 3.00 - #65-865 KRW 355,300 수량 6+ KRW 319,700   견적 요청
  • 3~5일내 배송
    ×

Laser V-Coat (266nm) 5.00 3.00 266 #65-851 KRW 195,800 수량 6+ KRW 176,200   견적 요청
  • 3~5일내 배송
    ×

Laser V-Coat (266nm) 10.00 3.00 266 #65-856 KRW 195,800 수량 6+ KRW 176,200   견적 요청
  • 품절/문의요망
    ×

Laser V-Coat (266nm) 20.00 3.00 266 #65-861 KRW 213,900 수량 6+ KRW 192,900   견적 요청
  • 3~5일내 배송
    ×

Laser V-Coat (266nm) 50.00 3.00 266 #65-866 KRW 406,000 수량 6+ KRW 365,400   견적 요청
  • 3~5일내 배송
    ×

Laser V-Coat (355nm) 5.00 3.00 355 #65-852 KRW 195,800 수량 6+ KRW 176,200   견적 요청
  • 3~5일내 배송
    ×

Laser V-Coat (355nm) 10.00 3.00 355 #65-857 KRW 195,800 수량 6+ KRW 176,200   견적 요청
  • 3~5일내 배송
    ×

Laser V-Coat (355nm) 20.00 3.00 355 #65-862 KRW 213,900 수량 6+ KRW 192,900   견적 요청
  • 3~5일내 배송
    ×

Laser V-Coat (355nm) 50.00 3.00 355 #65-867 KRW 406,000 수량 6+ KRW 365,400   견적 요청
  • 3~5일내 배송
    ×

Laser V-Coat (532nm) 5.00 3.00 532 #65-853 KRW 195,800 수량 6+ KRW 176,200   견적 요청
  • 3~5일내 배송
    ×

Laser V-Coat (532nm) 10.00 3.00 532 #65-858 KRW 195,800 수량 6+ KRW 176,200   견적 요청
  • 3~5일내 배송
    ×

Laser V-Coat (532nm) 20.00 3.00 532 #65-863 KRW 213,900 수량 6+ KRW 192,900   견적 요청
  • 3~5일내 배송
    ×

Laser V-Coat (532nm) 50.00 3.00 532 #65-868 KRW 406,000 수량 6+ KRW 365,400   견적 요청
  • 품절/문의요망
    ×

Laser V-Coat (1064nm) 5.00 3.00 1064 #65-854 KRW 195,800 수량 6+ KRW 176,200   견적 요청
  • 3~5일내 배송
    ×

Laser V-Coat (1064nm) 10.00 3.00 1064 #65-859 KRW 195,800 수량 6+ KRW 176,200   견적 요청
  • 3~5일내 배송
    ×

Laser V-Coat (1064nm) 20.00 3.00 1064 #65-864 KRW 213,900 수량 6+ KRW 192,900   견적 요청
  • 3~5일내 배송
    ×

Laser V-Coat (1064nm) 50.00 3.00 1064 #65-869 KRW 406,000 수량 6+ KRW 365,400   견적 요청
  • 품절/문의요망
    ×


TECHSPEC® λ/20 High Power Laser Line Windows는 설계 파장에서 투과율을 극대화하기 효율성 및 손상 임계치가 높은 V 코팅 처리를 특징으로 합니다. 이 윈도우는 2 - 10J/cm2 범위의 손상 임계치를 가지고 있어 대부분의 Nd:YAG 레이저 시스템에 손쉽게 통합될 수 있습니다. 코팅은 정밀 excimer grade UV급 용융 실리카 기판에 증착되기 때문에 탁월한 열안정성, 낮은 웨이브프론트 왜곡 및 극히 낮은 자가형광(auto-fluorescence) 특성을 보입니다. 맞춤형 옵션 또는 wedged 버전의 경우 당사로 문의 바랍니다.

Laser Optics

Filter

레이저 부품의 LIDT 이해와 표기

Laser induced damage threshold (LIDT) denotes the maximum laser fluence an optical component can withstand with an acceptable amount of risk.

바로 보기

광학 코팅 개론

Optical coatings are used to influence the transmission, reflection, or polarization properties of an optical component.

바로 보기

Gaussian Beams Calculator

Understanding Surface Roughness

Surface roughness describes how a shape deviates from its ideal form. This is critical for controlling light scatter in laser devices and other optical systems.

바로 보기

High Reflectivity Mirrors for Laser Applications

The industry standard method for quantifying reflectivity does not tell the whole story

바로 보기

고반사성 코팅

Highly reflective (HR) coatings are applied to optical components to minimize losses when reflecting lasers and other light sources.

바로 보기

High Power Laser Mirror의 취급 및 저장

Check out these best practices for handling and storing high power laser mirrors to decrease the risk of damage and increase lifetimes at Edmund Optics.

바로 보기

Effects of Laser Mirror Surface Flatness

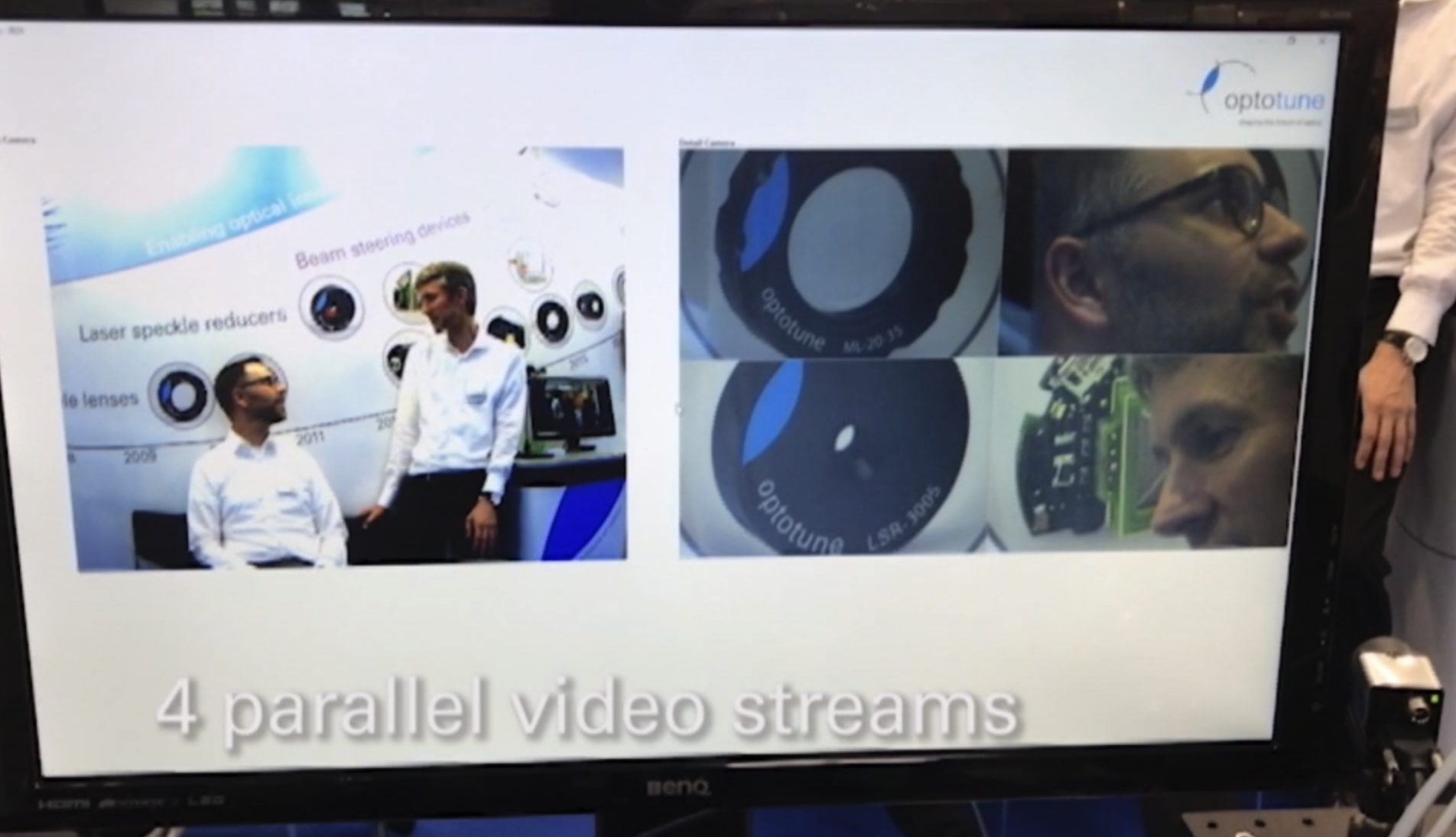

Optotune Beam Steering Mirrors Demonstration Video

Optotune Beam Steering Mirrors Demonstration Video

바로 보기

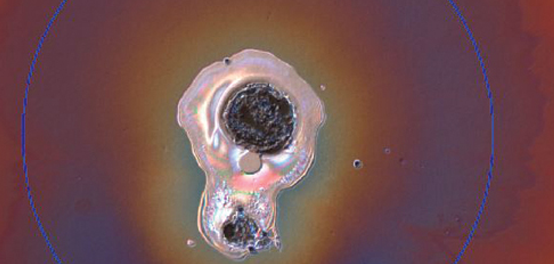

Spectroscopy and Optics: Laser mirrors: High reflectance is measured best with cavity ring-down spectroscopy

If CRDS is more accurate, why isn’t CRDS always used to measure the reflectivity of mirrors?

레이저 어플리케이션을 위한 REFLECTIVE OPTICS

Beam Conditioning Optics for UV, IR, and Broadband Lasers

바로 보기

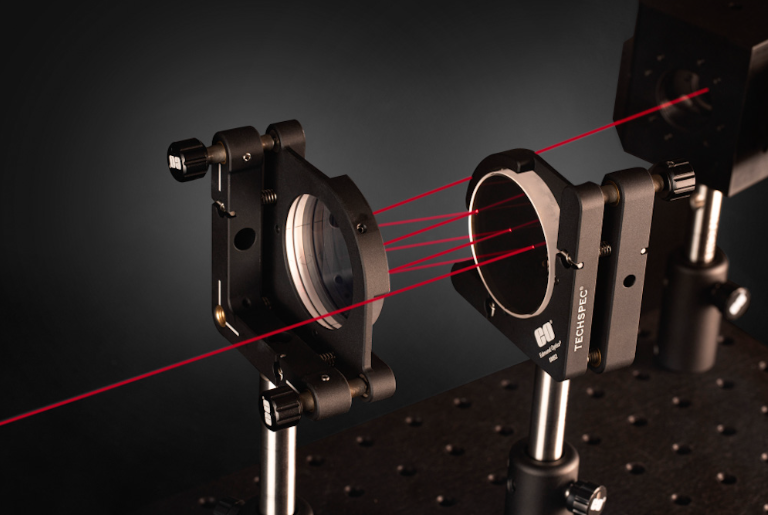

Highly-Dispersive Mirrors

Ultrafast highly-dispersive mirrors are critical for pulse compression and dispersion compensation in ultrafast laser applications, improving system performance.

바로 보기

What is the difference between ¼ wave, 1/10 wave, and 1/20 wave mirrors?

Angle of Incidence(입사각)

Angle of Reflection(반사각)

Eccentricity(편심)

Coating Impact on Flatness Calculator

Free-Space Optical Communication

Free-space optical (FSO) communications wirelessly transmit data through the air using lasers. FSO promises to revolutionize broadband internet access.

바로 보기

LIDT 상에서 빔 직경의 중요성

The diameter of a laser highly affects an optic’s laser induced damage (LIDT) as beam diameter directly impacts the probability of laser damage.

바로 보기

How to Align a Laser System

Join Chris Williams as he briefly explains the basics of how to align a laser system onto a target.

바로 보기

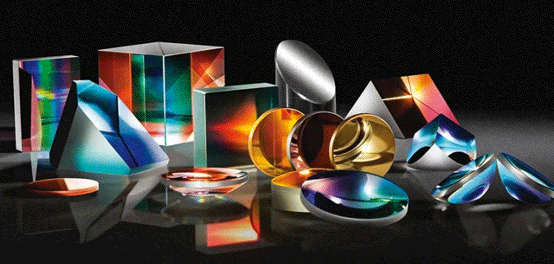

The Hidden Effects of Optical Coating Stress

How do you measure the reflectivity of mirrors with a reflectivity less than 99.5%?

Dielectric Coating(유전체 코팅)

First Surface Mirror

Ion-Beam Sputtering (IBS)

Reflection

Specular

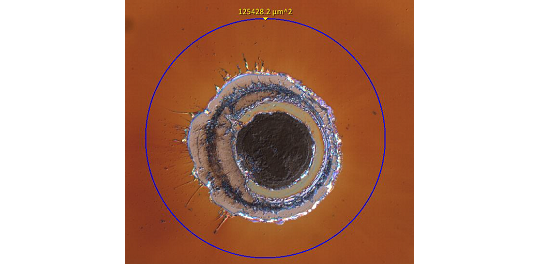

A Guide to (Not Over) Specifying Losses in Laser Optics
