Variable Ultrafast Compressor and Stretcher Kit

×
  • 최소한의 TOD(Third Order Dispersion)로 -10000fs2의 음의 GDD(Group Delay Dispersion, 군지연분산)
  • 최소한의 TOD(Third Order Dispersion)로 4000fs2의 양의 GDD(Group Delay Dispersion, 군지연분산)
  • UV/VIS/IR 극초단 레이저와 호환 가능
 제목   제품 비교하기   재고 번호   가격(부가세 별도)  구입하기
Variable Ultrafast Compressor and Stretcher Kit #29-183 신제품 KRW 2,747,800   견적 요청
  • 3~5일내 배송
    ×


해당 제품은 맞춤형 극초단 분산 시스템에 필요한 단순하면서도 합리적인 가격의 프레임워크를 제공합니다. 키트 구성품에 필수 광학 부품이 있으며 사용자는 각 어플리케이션에 맞는 분산 보정 미러를 선택해야 합니다. 정밀 마운팅 하드웨어로 쉽게 정렬이 가능하고 양방향으로도 사용할 수 있게 설계되었으며, Ti:Sapphire/Yb:doped 광섬유 레이저, 자외선/중적외선 레이저 등 널리 사용되는 극초단 레이저 제품군 중 대부분을 커버하는 옵션이 제공됩니다. 정렬이 일단 완료되면 해당 제품은 휴대가 가능하고 다중 레이저 설정 간 공유를 통해 가변 분산 보정에 필요한 드롭인 솔루션 역할을 할 수 있습니다. 해당 제품은 다광자 현미경, 초고속 미세 가공과 같은 어플리케이션에서 분산을 보정하고 펄스를 재압축하는 데 적합합니다.

기술 정보

Type Spectral Range Wavelength Range (nm) GDD Specification (fs2) GDD Increments (fs2) Required Mirrors

Compressor

Broadband 600 - 950 -200 to -50 -50

1x #17-064

3x #13-060

1x #13-059

Compressor Broadband 650 - 1350 -240 to -60 -60

1x #14-674

3x #39-208

1x #39-194

Compressor UV 255 - 277 -1160 to -300 -290

2x #17-066

3x #11-735

1x #11-734

Compressor Ti:Sapphire 780 - 830 -10400 to -2600 -2600

2x #12-331

3x #26-830

1x #26-829

Compressor Near-IR 1010 - 1050 -8000 to -2000 -2000

2x #17-070

3x #26-836

1x #26-835

Compressor Near-IR 1000 - 1060 -4000 to -1000 -1000

2x #12-333

3x #26-836

1x #26-835

Compressor Near-IR 950 - 1120 -1600 to -400 -400

2x #12-328

3x #17-265

1x #17-264

Compressor 2µm 2000 - 2200 -8000 to -2000 -2000

2x #11-414

3x #39-208

1x #39-194

Stretcher Ti:Sapphire 700 - 1000 200 to 800 200

2x #17-069

3x #13-060

1x #13-059

Stretcher Near-IR 800 - 1100 200 to 800 200

2x #17-069

3x #17-265

1x #17-264

Stretcher Mid-IR 200 - 3600 1000 to 4000 1000

2x #17-063

3x #39-208

1x #39-194

Filter

레이저 부품의 LIDT 이해와 표기

Laser induced damage threshold (LIDT) denotes the maximum laser fluence an optical component can withstand with an acceptable amount of risk.

바로 보기

광학 코팅 개론

Optical coatings are used to influence the transmission, reflection, or polarization properties of an optical component.

바로 보기

Gaussian Beams Calculator

Multiphoton Microscopy

Multiphoton microscopy is ideal for capturing high-resolution 3D images with reduced photobleaching and phototoxicity compared to confocal microscopy.

바로 보기

Understanding Surface Roughness

Surface roughness describes how a shape deviates from its ideal form. This is critical for controlling light scatter in laser devices and other optical systems.

바로 보기

Basics of Ultrafast Lasers

Master the fundamentals of ultrafast lasers and how to choose optics that can withstand their high powers and short pulse durations.

바로 보기

Highly-Dispersive Mirrors

Ultrafast highly-dispersive mirrors are critical for pulse compression and dispersion compensation in ultrafast laser applications, improving system performance.

바로 보기

Ultrafast Highly-Dispersive Mirrors

Pulse Compression and Dispersion Compensation for Ultrafast Lasers

바로 보기

Group Delay Dispersion and White Light Interferometry

Understanding group delay dispersion (GDD) is critical for knowing how ultrafast laser pulses will be stretched or compressed.

바로 보기

극초단 레이저의 LIDT

The short pulse durations of ultrafast lasers make them interact with optical components differently, impacting the optic’s laser damage threshold.

바로 보기

Ultrafast Dispersion

The short pulse durations of ultrafast lasers lead to broad wavelength bandwidths, making ultrafast systems especially susceptible to dispersion and pulse broadening.

바로 보기

극초단 레이저 – 극초단 결맞음(Ultrafast Coherence)의 기본 원리

Advances in laser technology have made it possible to produce pulses ranging from a few femtoseconds to tens of attoseconds. Learn more at Edmund Optics.

바로 보기

Edmund Optics TPA Ultrafast Autocorrelator by APE (700-1100nm) #11-760

Edmund Optics® manufactures thousands of precision aspheric lenses per month in our asphere manufacturing cell that operates 24 hours a day

바로 보기

분산 보정 용도를 위한 Highly-Dispersive Ultrafast Mirror

Learn how Highly-Dispersive Mirrors compensate for dispersion and compress pulse duration in ultrafast laser systems, which is critical for maximizing performance.

바로 보기

Edmund Optics - UltraFast Innovations - Partnership 2021

Industry-leading laser optics are more available than ever before through the partnership of UltraFast Innovations and Edmund Optics.

바로 보기

Ultrafast Laser Optics from Edmund Optics - PhotonicsNEXT 2021

Learn about Edmund Optics' ultrafast laser optics capabilities in this interview with Tony Karam from the PhotonicsNEXT Summit in January 2021.

바로 보기

Combatting thermal lensing in high-power ultrafast laser systems

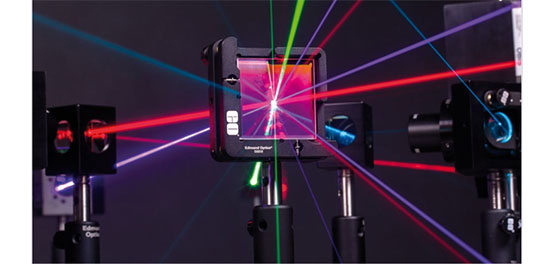

Ultrafast Mirrors: The importance of high reflectance and dispersion control in ultrafast optics

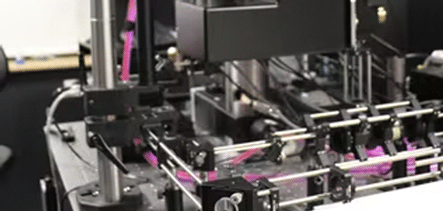

The right stuff: Lasers and optics for ultrafast microscopy
