Wire Grid Polarizing Cube Beamsplitters

×
  • 넓은 입사각에 걸친 높은 Contrast
  • 넓은 각도에 걸친 낮은 Color Shift
  • Non-Collimated Light Source에 적합
 Extinction Ratio   Efficiency (Tp*Rs  Dimensions (mm)   Wavelength Range (nm)   제품 비교하기   재고 번호   가격(부가세 별도)  구입하기
1000:1 @ 450nm
2000:1 @ 550nm
3000:1 @ 650nm
>62% @ 450nm
>65% @ 550nm & 650nm
25.4 x 25.4 x 25.4 400 - 700 #89-604 KRW 674,300 수량 6+ KRW 529,300   견적 요청
  • 3~5일내 배송
    ×


Wire Grid Polarizing Cube Beamsplitters는 광대역 백색 광원을 사용하는 기기와 같이 non-collimated light를 사용하는 기기를 위해 설계되었습니다. Wire Grid Polarizing Cube Beamsplitter는 precision high tolerance right angle prism 두 개 사이에 접착되어 있는 wire grid polarizer로 구성되어 있습니다. Beamsplitter의 각 면에는 면당 평균 0.5% 미만의 반사율을 제공하는 AR (anti-reflection) 코팅 처리를 했습니다. 아울러 이 beamsplitter는 400 – 700nm의 스펙트럼 범위, 그리고 ±25°의 넓은 원추각에 걸쳐 contrast를 유지합니다.

기술 정보

Contrast (typical)
Wavelength Incident Cone of Light
±5° ±10° ±15° ±20° ±25°
400 - 500nm 2,100:1 2,000:1 1,600:1 1,400:1 1,100:1
500 - 600nm 4,000:1 3,900:1 2,900:1 2,600:1 1,900:1
600 - 700nm 6,000:1 5,500:1 4,200:1 3,800:1 2,500:1
Filter

광학 코팅 개론

Optical coatings are used to influence the transmission, reflection, or polarization properties of an optical component.

바로 보기

Introduction to Polarization

Is polarization a new topic for you? Learn about key terminology, types, and more information to help you understand polarization at Edmund Optics.

바로 보기

Does the polarization of light change when it passes through a beamsplitter?

I would like to split light from a circularly polarized laser source into two beams. What happens when it passes through a cube beamsplitter – both non-polarizing and polarizing?

Non-Polarizing Beamsplitter

Polarizing Beamsplitter

Laser-Cut Polymer Polarizer and Retarder Quote Tool

Beamsplitter란 무엇인가?

Optical components that create two beams by splitting incident light are beamsplitters. Read more about the different types of beamsplitters at Edmund Optics.

바로 보기

빔스플리터 제품 소개

Beamsplitters do exactly what their name implies: split incident light beams.

바로 보기

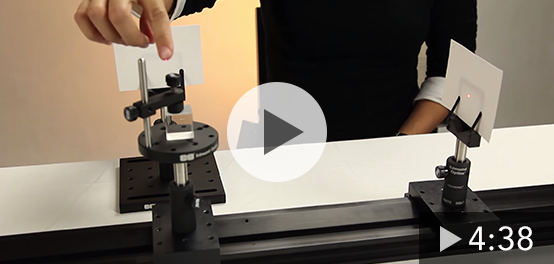

올바른 빔스플리터 선택하기

Continuing from where Part I: X-Y Setup ends, learn how to add a Z-axis to an existing X-Y configuration to achieve three degrees of freedom.

바로 보기

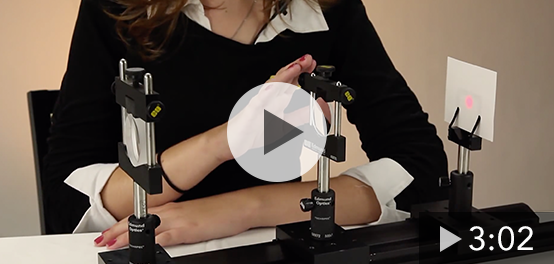

올바른 Beam Expander 선택
