0° AOI, 25mm Dia, UV Hot Mirror

UV Hot Mirrors

×
재고 #46-587 3~5일내 배송
×
Quantity Selector - Use the plus and minus buttons to adjust the quantity. +
KRW 126,180 KRW 210,300
수량 1-9
KRW 126,180 KRW 210,300
수량 10+
KRW 111,360 KRW 185,600
가격(부가세 별도)
견적 요청
제품 정보 다운로드
Angle of Incidence (°):
0
Coating:
Hot Mirror, 0°
Diameter (mm):
25.00 ±0.25
Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More
Fused Silica (Corning 7980)
Surface Quality:
80-50
Thickness (mm):
3.00
Thickness Tolerance (mm):
±0.2
Type:
Shortpass Filter
Clear Aperture (%):
90
Edges:
Ground

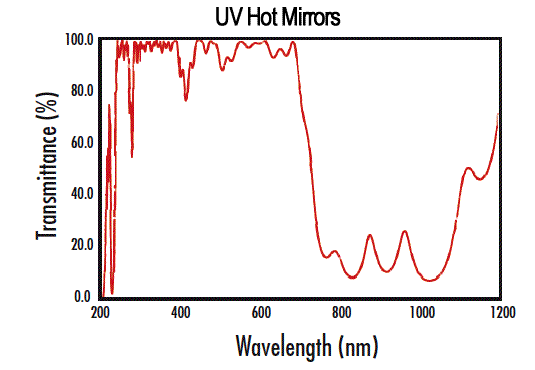

Coating Specification:
Ravg >70% @ 800 - 1050nm
Tavg >80% @ 245 - 460nm
Wavelength Range (nm):
245 - 1050
Surface Flatness (P-V):
3 - 5λ
Coating Type:
Dielectric

Regulatory Compliance

RoHS 2015:
Certificate of Conformance:
REACH 241:

제품군의 상세 설명

0° 입사각에 맞춰 설계된 이 UV Hot Mirrors의 multi-layer dielectric coating은 infrared radiation을 반사시켜 축열을 제한하면서도 UV 및 VIS는 통과시킵니다. fused silica substrate의 높은 투과율은 projection 및 illumination 시스템, 그리고 UV excitation wavelength의 투과와 온도에 민감한 샘플에 해로운 radiation의 차단이 필요한 fluorescence 용도에 아주 적합합니다.

Hot mirrors는 열이 많이 발생해 민감한 부품들이 빨리 손상될 수 있는 많은 프로젝션 및 조명 시스템에 매우 중요합니다. Hot mirrors는 열 생성의 주요 원인인 NIR은 반사시키면서 VIS는 투과시키도록 특수 코팅이 되어 있습니다. Hot mirror를 사용함으로써 전체 시스템 성능에 끼치는 영향이 최소화되도록 heat level이 제한됩니다.
