12.7mm Dia. NIR, Precision Broadband Laser Mirror

×
재고 번호 #45-755 3~5일내 배송
×
Quantity Selector - Use the plus and minus buttons to adjust the quantity. +
KRW 188,500
수량 1-5
KRW 188,500
수량 6+
KRW 166,800
가격(부가세 별도)
견적 요청
제품 정보 다운로드

제품사양

General

Type:
Laser Mirror
Note:
Optical Power: λ/10

Physical & Mechanical Properties

Clear Aperture (%):
>80
Back Surface:
Ground
Diameter (mm):
12.70 +0.0/-0.2
Thickness (mm):
5.00 ±0.1

Optical Properties

Surface Quality:
20-10
Coating Specification:

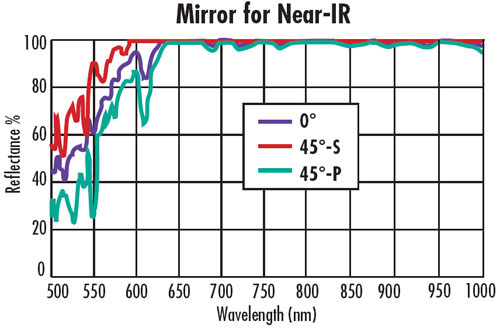

Ravg >99% @ 700 - 900nm
Wavelength Range (nm):
700 - 900
Surface Flatness (P-V):
λ/10
Irregularity (P-V) @ 632.8nm:
λ/20
Coating Type:
Dielectric
Coating:
Dielectric Mirror (700-900nm)
Angle of Incidence (°):
0-45
Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More
Damage Threshold, By Design: Damage threshold for optical components varies by substrate material and coating. Click here to learn more about this specification.
10 J/cm2 @ 10ns

Environmental & Durability Factors

Durability:
MIL-M-13508-C

Regulatory Compliance

RoHS 2015:
REACH 201:
Certificate of Conformance:

제품설명

  • Tunable Lasers 및 다중 Laser Sources 반사에 적합
  • 모든 Polarization 상태는 0 - 45°부터 높은 반사율
  • 다양한 코팅 옵션 이용 가능

TECHSPEC® Precision Broadband Laser Mirrors는 높은 반사율을 특징으로 하기 때문에 UV, VIS 및 NIR 빔 조정 용도에 적합한 제품입니다. 광대역 dielectric enhanced silver coating은 입사각이 0 - 45˚일 때 450nm - 12micron 파장 범위에서 98%가 넘는 반사율을 보입니다. 또한, 이 미러는 표준 내구력에 관한 MIL-M-1350BC 규정을 충족합니다. TECHSPEC® Precision Broadband Laser Mirrors는 레이저 스캐닝, 빔 조정을 포함한 높은 laser damage threshold를 필요로하는 까다로운 레이저 용도에 이상적으로 사용할 수 있습니다.
