15mm Focal Length f/8, Relay Lens

TECHSPEC Relay Lenses

×
재고 #45-761 3~5일내 배송
×
Quantity Selector - Use the plus and minus buttons to adjust the quantity. +
KRW 330,600
수량 1-5
KRW 330,600
수량 6+
KRW 264,600
가격(부가세 별도)
견적 요청
제품 정보 다운로드
Diameter (mm):
9.00
Effective Focal Length EFL (mm):
15.00
Horizontal Field of View, 1/2" Sensor:
8.00mm
Number of Lenses:
6.00
Aperture (f/#):
f/8
Length (mm):
17.50
Maximum Sensor Format:
1/2"
Object to Image Track Length (mm):
53.50
Type:
Relay Lens
Object Distance (mm):
18.00
Image Distance (mm):
18.00

Regulatory Compliance

RoHS 2015:
Reach 209:
Certificate of Conformance:

제품군의 상세 설명

  • 1:1 이미징에 최적화
  • f/4과 f/8 버전으로 제공

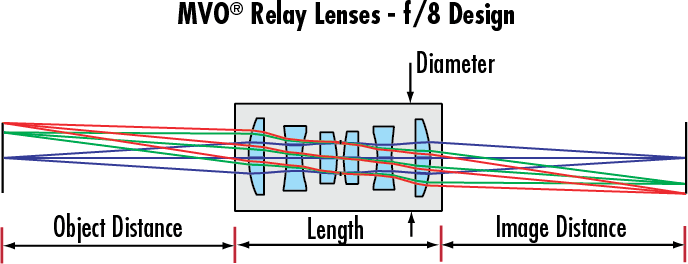

오늘날 많이 응용되는 다수의 전자 이미징 어플리케이션을 위해 설계된 당사의 Mounted relay lenses는 컴팩트한 패키지 구조의 제품으로서 매우 뛰어난 이미징 성능을 제공합니다. 이 렌즈는 광전자 증배관(photomultiplier tube), 검사, 1:1 이미징 용도를 위해 릴레이 시스템을 제작하는 설계자들이 사용하기 적합합니다. 15mm fl 버전은 최대 8mm 직경의 필드 적용 면적과 30mm 및 45mm fl 버전은 최대 11mm 직경의 필드 적용 면적을 보유합니다. 통합이 간편하도록 배럴의 직경은 최소 크기로 제작되었습니다. Distance 값은 하우징의 끝단에서부터 측정된 값입니다.
