25mm Dia 50R/50T, VIS Plate Beamsplitter

Visible and NIR Plate Beamsplitters

×
재고 #45-852 3~5일내 배송
×
Quantity Selector - Use the plus and minus buttons to adjust the quantity. +
KRW 171,100
수량 1-5
KRW 171,100
수량 6+
KRW 137,800
가격(부가세 별도)
견적 요청
제품 정보 다운로드
Angle of Incidence (°):
45
Clear Aperture (%):
>85
Coating Specification:

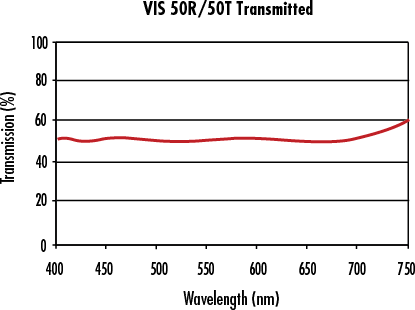

Surface 1: 50/50 ±5% @ 550nm, ±10% @ 400 - 700nm

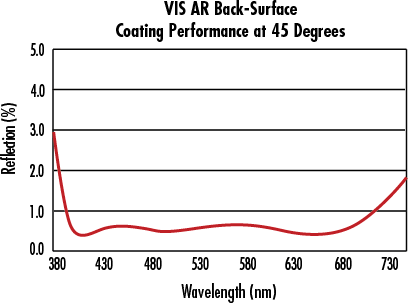

Surface 2: AR Ravg ≤1%, Rabs ≤2% @ 400 - 700nm
Construction:
Plate
Diameter (mm):
25.00
Edges:
Cut with 0.25mm maximum edge chip
Note:
Beamsplitter-coated side is marked with a black dot
Parallelism (arcmin):
≤3
Reflection/Transmission Ratio (R/T):
50/50
Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More
Surface Flatness (P-V):
1λ per inch
Surface Quality:
60-40
Thickness (mm):
3.00 ±0.25
Type:
Standard Beamsplitter
Wavelength Range (nm):
400 - 700

Regulatory Compliance

RoHS 2015:
Certificate of Conformance:
Reach 240:

제품군의 상세 설명

  • 다양한 빔 분할 비율 이용 가능
  • VIS 및 NIR 코팅 옵션 제공
  • 두 번째 표면은 다층의 AR 코팅 처리
  • C-Mounted Plate Beamsplitters 또한 이용 가능

TECHSPEC® Visible and NIR Plate Beamsplitters는 이중배율 이미징 시스템 및 저출력 레이저 빔에 이상적으로 사용할 수 있습니다. 이 빔스플리터는 정밀 연마된 고품질 광학 등급 글래스로 제작된 최소 두께의 기판으로 설계되어 최적의 성능을 자랑합니다. 광대역 유전체 코팅은 처리량(throughput)을 극대화하여 고스트 이미지를 최소화하는 데 안성맞춤이며, 금속 코팅보다 에너지 손실을 크게 줄여줍니다. 후면은 다층의 AR 코팅 처리가 되어 각 파장 범위에서 후방 반사가 1.0% 미만으로 감소합니다.

참고: 원활하지 못한 공급으로 인하여, 당사의 키트 제품은 나무 박스가 아닌 대체 용기에 포장되어 배송될 수 있습니다. 기타 자세한 사항은 [email protected]로 문의 바랍니다.

제목 제품 비교하기재고 번호  가격(부가세 별도) 구입하기
Visible Plate Beamsplitter Kit, 25mm Diameter #83-388 KRW 680,100   견적 요청
  • 품절/문의요망
    ×
Near Infrared Plate Beamsplitter Kit, 25mm Diameter #83-956 KRW 680,100   견적 요청
  • 3~5일내 배송
    ×
