25mm N-SF11 Uncoated Equilateral Prism

Equilateral Prisms

Equilateral Prisms

×
재고 #47-277 3~5일내 배송
×
Quantity Selector - Use the plus and minus buttons to adjust the quantity. +
KRW 141,120 KRW 201,600
수량 1-5
KRW 141,120 KRW 201,600
수량 6+
KRW 126,980 KRW 181,400
가격(부가세 별도)
견적 요청
제품 정보 다운로드
Coating:
Uncoated
Length of Face (mm):
25.00
Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More
Length (mm):
25.00
Surface Quality:
40-20
Type:
Equilateral Prism
Dimensional Tolerance (mm):
±0.1
Angle Tolerance (arcmin):
±2
Image Orientation:
Dispersion
Wavelength Range (nm):
400 - 2500
Power (fringes) @ 632.8nm:
2.50
Irregularity (fringes) @ 632.8nm:
0.50

Regulatory Compliance

RoHS:
Certificate of Conformance:

제품군의 상세 설명

  • 광 분산에 적합
  • 크기: 5 - 50mm
  • 비코팅 및 무반사(AR) 코팅 옵션 제공
  • 다른 Equilateral Prism 제품 보유

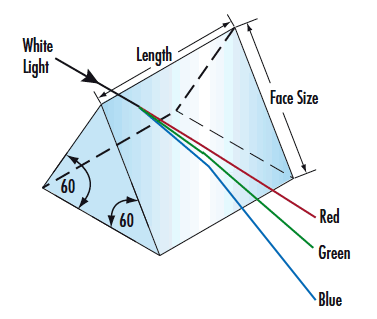

해당 제품은 세 각이 각각 60°로 동일하며 분산 프리즘이라고도 합니다. 또한, 파장 분리 어플리케이션에 적합합니다. 해당 제품은 비코팅 혹은 단층 MgF2 무반사(AR) 코팅 옵션이 제공됩니다.
