50mm Square, Green Dichroic Filter

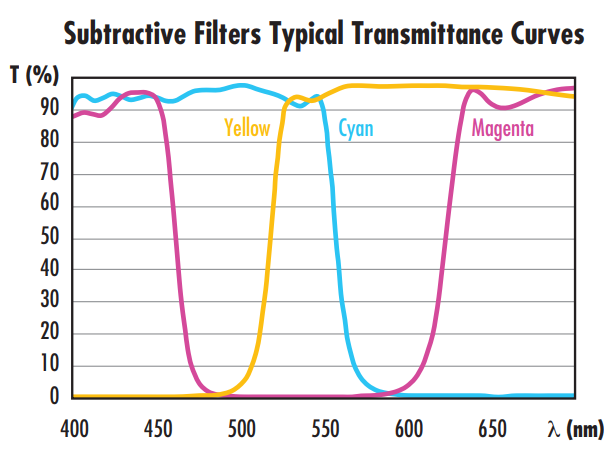

Additive and Subtractive Dichroic Color Filters

×
재고 #46-139 3~5일내 배송
×
Quantity Selector - Use the plus and minus buttons to adjust the quantity. +
KRW 34,380 KRW 57,300
수량 1-24
KRW 34,380 KRW 57,300
수량 25+
KRW 30,300 KRW 50,500
가격(부가세 별도)
견적 요청
제품 정보 다운로드
Dimensions (mm):
50.0 x 50.0
Angle of Incidence (°):
0
Cut-Off Wavelength (nm):
575.00
Cut-On Wavelength (nm):
505.00
Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More
Length (mm):
50.00
Operating Temperature (°C):
<100
Coating:

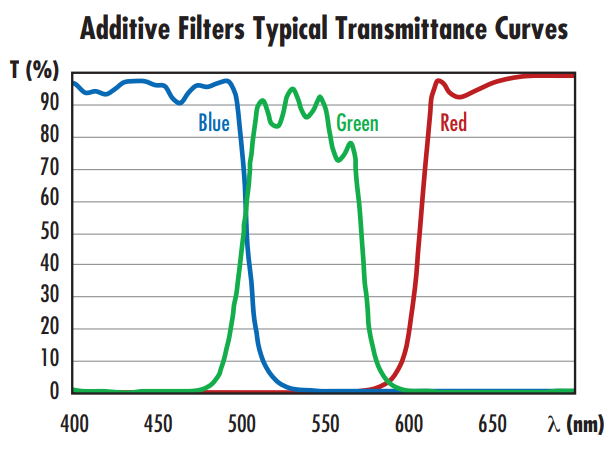

Additive Color
Color:
Green
Surface Quality:
80-50
Thickness (mm):
2.00 Nominal
Type:
Dichroic Filter
Width (mm):
50.00
Dimensional Tolerance (mm):
±0.25
Clear Aperture (%):
≥85
Cut-On Wavelength Tolerance (μm):
0.012
Coating Specification:
Tavg <1.0% @ 400 - 480nm, Tavg >80% @ 525 - 555nm, Tavg <1.0% @ 590 - 720nm
Tabs <1.0% @ 425 - 455nm, Tabs >70% @ 530 - 550nm, Tabs <1.0% @ 620 - 690nm
Cut-Off Wavelength Tolerance (μm):
0.012

Regulatory Compliance

RoHS 2015:
Certificate of Conformance:
REACH 241:

제품군의 상세 설명

  • 높은 이색성의 채도 타입
  • 다양한 사이즈와 세트
  • 정밀한 유리 기반

머신 비전에 적합한 dichroic 필터는 일반적으로 색 분리와 대비 상승용도로 사용됩니다. 마운팅이 안된 상태로 제공되며 다양한 카메라와 조명 셋업에 추가 설치가 쉽게 가능합니다. 추가적으로 dichroic 필터는 narrow bandpass interference 필터로 얻을 수 없는 넓은 시야를 제공합니다. Pre-loaded filter wheel은 완성된 세트 입니다.

일반적인 구성은 photo enlarger, beam seperation을 포함하고 격리시키려는 색상을 선택 후 이미징 렌즈 앞에 필터를 놓게 됩니다. 광원이 이미 유색이라면(예, red LED) 필요없는 주변 빛을 제거하는데 사용될 수 있습니다.

제목 제품 비교하기재고 번호  가격(부가세 별도) 구입하기
Red, Green & Blue, 12.5mm Diameter, Dichroic Filter Set #52-545 KRW 87,000   견적 요청
  • 3~5일내 배송
    ×
Cyan, Magenta & Yellow, 12.5mm Diameter, Dichroic Filter Set #52-548 KRW 87,000   견적 요청
  • 3~5일내 배송
    ×
Red, Green & Blue, 25mm Diameter, Dichroic Filter Set #52-546 KRW 103,700   견적 요청
  • 품절/문의요망
    ×
Cyan, Magenta & Yellow, 25mm Diameter, Dichroic Filter Set #52-549 KRW 103,700   견적 요청
  • 3~5일내 배송
    ×
Cyan, Magenta & Yellow, 50mm Diameter, Dichroic Filter Set #52-550 KRW 59,160 KRW 147,900   견적 요청
  • 3~5일내 배송
    ×
Red, Green & Blue, 50mm Diameter, Dichroic Filter Set #52-547 KRW 147,900   견적 요청
  • 3~5일내 배송
    ×
Red, Green & Blue, 50mm Square, Dichroic Filter Set #46-140 KRW 147,900   견적 요청
  • 품절/문의요망
    ×
Cyan, Magenta & Yellow, 50mm Square, Dichroic Filter Set #46-141 KRW 73,950 KRW 147,900   견적 요청
  • 3~5일내 배송
    ×
