Penta Prism in C-Mount Cube

#53-401, Penta Prism in C-Mount Cube (Case Removed)

#53-401, Penta Prism in C-Mount Cube (Case Removed) #53-401, Penta Prism in C-Mount Cube (Complete)
×
재고 #53-401 3~5일내 배송
×
Quantity Selector - Use the plus and minus buttons to adjust the quantity. +
KRW 527,100
수량 1-4
KRW 527,100
수량 5+
KRW 465,000
가격(부가세 별도)
견적 요청
제품 정보 다운로드
Coating:
MgF2 & Aluminized
Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More
Surface Quality:
60-40
Mounting Threads:
¼-20
Type:
Penta Prism
Extension Length (mm):
38.0
Dimensional Tolerance (mm):
±0.10
Angle Tolerance (arcmin):
3
Bevel:
Protective bevel as needed
Construction:
Housing: Black Anodized Aluminum
Length of Legs (mm):
25.00
Image Orientation:
Right-Handed
Coating Specification:
Entrance/Exit Faces: Ravg ≤1.75% @ 400 - 700nm
Reflecting Surfaces: Ravg >85% @ 400 - 700nm w/Black Overpaint
Ray Deviation (°):
90
Wavelength Range (nm):
400 - 700
Thread Type:
C-Mount (1" x 32 TPI)
Power (fringes) @ 632.8nm:
3.00
Irregularity (fringes) @ 632.8nm:
0.25

Regulatory Compliance

RoHS:
Certificate of Conformance:

제품군의 상세 설명

  • Ray Deviation: 90°
  • 우측 이미지
  • 시각적/비디오 용도에 매우 적합함
  • 당사의 C-Mount Components와 쉽게 결합됨

C-mount 호환 하드웨어와 함께 사용하도록 디자인된 당사의 TECHSPEC® C-Mounted Penta Prism은 쉽고 빠르게 통합할 수 있습니다. TECHSPEC® N-BK7 Penta Prism은 2개의 female C-mount aperture를 갖춘 검정색 알루미늄 코팅 하우징에 견고하게 고정되어 있습니다. 용도로는 90°의 ray deviation을 필요로 하는 공간이 제한되어 있는 시각적/비디오 이미징 시스템이 포함됩니다. aperture의 입구 및 출구면은 AR 코팅 처리되어 있어 효율을 극대화하고 double-images 영향을 줄여 줍니다. base의 ¼-20 tapped hole은 post mounting을 허용합니다.

Penta Prism은 5면 프리즘으로서 90°의 ray deviation과 우측 생성 이미지를 특징으로 합니다. 반사면은 효율 증대를 위해 알루미늄으로 도금 처리되어 있습니다. 프리즘이 약간 움직이더라도 광선이 반사되는 true right angle에는 영향을 주지 않기 때문에 penta prism은 광학 시스템에서 직각을 확인하는 데 아주 적합한 툴입니다.

Filter

무반사(AR) 코팅

Anti-reflection (AR) coatings are applied to optical components to increase throughput and reduce hazards caused by back-reflections.

바로 보기

광학 코팅 개론

Optical coatings are used to influence the transmission, reflection, or polarization properties of an optical component.

바로 보기

Optical Prisms 소개

Learn about the different types of optical prisms, their applications, and how to select the right prism for your specific system.

바로 보기

Optical Prism 리뷰

I’d like to adhere two prisms together, how can I effectively achieve this? Is there a specific adhesive that you recommend?

Trihedral Prism (Corner Cube Retroreflector)

Dove Prism

Equilateral (Dispersing) Prism

Littrow Dispersion Prism

Penta Prism

Prism

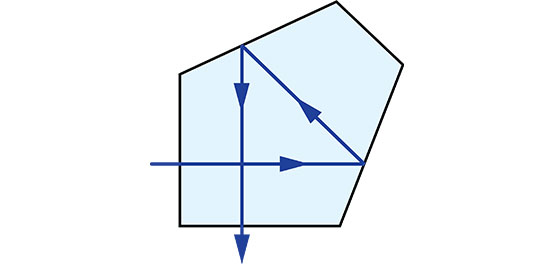

Prism Tunnel Diagrams

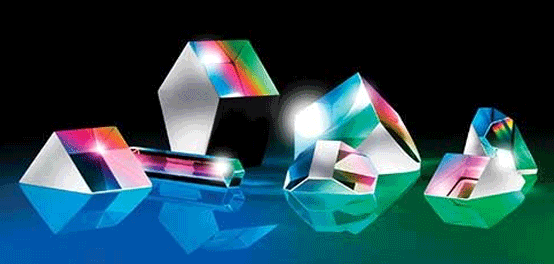

Optical Prism Application Examples
