372nm CWL, 25mm Dia., Hard Coated OD 4.0 10nm Bandpass Filter

TECHSPEC Hard Coated OD 4.0 10nm Bandpass Filters

×
재고 #12-151 3~5일내 배송
×
Quantity Selector - Use the plus and minus buttons to adjust the quantity. +
KRW 397,300
수량 1-5
KRW 397,300
수량 6+
KRW 310,300
가격(부가세 별도)
견적 요청
제품 정보 다운로드

Product Details

Type:
Bandpass Filter

Physical & Mechanical Properties

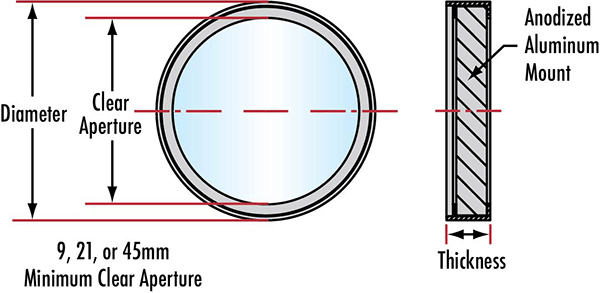

Diameter (mm):
25.00 +0.0/-0.1
Clear Aperture CA (mm):
21.21
Construction:
Mounted in Black Anodized Ring
Physical Durability:
Adhesion per MIL-PRF-13830B, Section C.4.5.12
Moderate abrasion per MIL-PRF-13830B, Section C.4.5.11
Cleaning per MIL-C-48497A Section 4.5.4.2
Substrate Thickness (mm):
3.5 ±0.5 typical

Optical Properties

Angle of Incidence (°):
0
Optical Density OD (Average):
≥4.0
Center Wavelength CWL (nm):
372.00 ±2.0
Full Width-Half Max FWHM (nm):
10.00 ±2.0
Full Width-Half Max FWHM Tolerance (nm):
±2.0
Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More
Optical Glass
Minimum Transmission (%):
≥85
Coating:
Hard Coated
Surface Quality:
80-50
Blocking Wavelength Range (nm):
200 - 1200

Threading & Mounting

Mount Thickness (mm):
5.0 ±0.1

Environmental & Durability Factors

Environmental Durability:
Humidity per MIL-STD-810H, Section 507.6
Temperature per MIL-STD-810H, Section 501.7 and 502.7

Additional Info

Typical Applications:
372nm Coherent® OBIS™ Line

Regulatory Compliance

RoHS 2015:
Certificate of Conformance:
REACH 241:

제품군의 상세 설명

  • 생명 과학 또는 화학 분석용으로 적합
  • UV, VIS 및 IR 중심 파장에 사용 가능
  • 고성능 하드 코팅
  • Hard Coated OD4.0 5nm25nm50nm Bandpass Filter도 사용 가능

TECHSPEC® Hard Coated OD 4.0 10nm Bandpass Filter는 불꽃 광도측정, 기본요소 또는 레이저 라인 분리, 형광, 레이저 다이오드 클리닝 또는 화학적 감지 또는 분석을 포함한 광범위한 용도로 사용되는 narrowband filter입니다. TECHSPEC® Hard Coated OD 4.0 10nm Bandpass Filter는 내구성 있는 하드 코팅으로 투과율은 높이면서 필터 품질 저하는 최소화시켜 줍니다. 이 광학 필터는 까다로운 용도에서 높은 성능을 제공하기 위한 가파른 투과 곡선과 깊은 차단 특성을 갖고 있습니다.

참고: 원활하지 못한 공급으로 인하여, 당사의 키트 제품은 나무 박스가 아닌 대체 용기에 포장되어 배송될 수 있습니다. 기타 자세한 사항은 [email protected]로 문의 바랍니다.

제목 제품 비교하기재고 번호  가격(부가세 별도) 구입하기
12.5mm Dia., Nd:YAG Hard Coated OD 4.0 10nm Bandpass Filter Kit (4 Filters) #15-097 KRW 939,600   견적 요청
  • 품절/문의요망
    ×
25mm Dia., Nd:YAG Hard Coated OD 4.0 10nm Bandpass Filter Kit (4 Filters) #15-098 KRW 1,506,600   견적 요청
  • 품절/문의요망
    ×
50mm Dia., Nd:YAG Hard Coated OD 4.0 10nm Bandpass Filter Kit (4 Filters) #15-099 KRW 3,672,900   견적 요청
  • 품절/문의요망
    ×
All mounted TECHSPEC® Optical Filters have an arrow on the side of the mount that points to the filter-coated surface for quick reference. Filter oriented such that arrow points to filter coated surface S1. Anti-reflective (AR) coating is applied to S2.
All mounted TECHSPEC® Optical Filters have an arrow on the side of the mount that points to the filter-coated surface for quick reference. Filter oriented such that arrow points to filter coated surface S1. Anti-reflective (AR) coating is applied to S2.
