6.0mm Optic Dia., Optic Mount

Optic Component Mounts

×
재고 #64-552 3~5일내 배송
×
Quantity Selector - Use the plus and minus buttons to adjust the quantity. +
KRW 43,500
수량 1-9
KRW 43,500
수량 10+
KRW 39,200
가격(부가세 별도)
견적 요청
제품 정보 다운로드
Type:
Fixed
Type of Optics:
Circular
Size of Compatible Optics (mm):
6.0
Clear Aperture CA (mm):
5.0
Outer Diameter (mm):
30.0
Thickness (mm):
12.00
Construction:
Black Anodized Aluminum
Compatible Post:
M6 x 1.0, ¼-20
Max. Thickness of Compatible Optics (mm):
5.70

Regulatory Compliance

RoHS 2015:
Certificate of Conformance:
Reach 240:

제품군의 상세 설명

  • 간편한 Mounting Arrangement
  • Metric과 English Configurations
  • Black Anodized Aluminum 구조

고정 광학 제품은 렌즈, 미러, 기타 광학 구성품을 고정하기 위해 제작됩니다. 포함된 retainer ring은 광학 구성품들을 안전하게 제자리에 지탱시켜 줍니다. Breadboard에 마운팅하려면 Postpost holder가 필요합니다. Mount는 English(¼-20)와 Metric (M6) standard post 둘 다 수용.

제목 제품 비교하기재고 번호  가격(부가세 별도) 구입하기
25.4mm Optic Dia., Fixed Optic Mount, Quick Start Optical Mounts #17-515 KRW 135,800   견적 요청
  • 품절/문의요망
    ×
50.0mm Optic Dia., Fixed Optic Mount, Quick Start Optical Mounts #17-516 KRW 125,200   견적 요청
  • 품절/문의요망
    ×

기술 정보

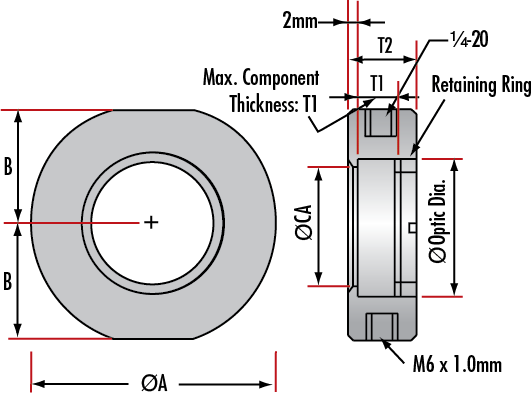

Maximum Optic Diameter Clear Aperture (CA) Mount Diameter A B Maximum Optic Thickness T1 Mount Thickness T2 Stock No.
5 4 30 13.5 5.7 12 #64-551
6 5 30 13.5 5.7 12 #64-552
9 6 30 13.5 6 12 #64-553
10 7 30 13.5 6 12 #64-554
12 9 35 16.0 10 16 #64-555
12.7 9.5 35 16.0 10 16 #64-556
15 12 35 16.0 10 16 #64-557
18 15 40 19.0 12 18 #64-558
20 17 40 19.0 12 18 #64-559
25 22 45 21.5 10 16 #64-560
25.4 22 45 21.5 10 16 #64-561
25.4 22 45 21.5 13 19 #65-562
30 26 50 24.0 6 12 #64-563
30 26 50 24.0 12 18 #64-564
38.1 34 60 29.0 12 18 #64-565
40 36 60 29.0 12 18 #64-566
50 46 70 34.0 12 18 #64-567
50 46 70 34.0 18 24 #64-568
50.8 46 70 34.0 12 28 #64-569
76.2 71 100 49 20 26 #64-570
